ADSS Cable




  • Description of the product

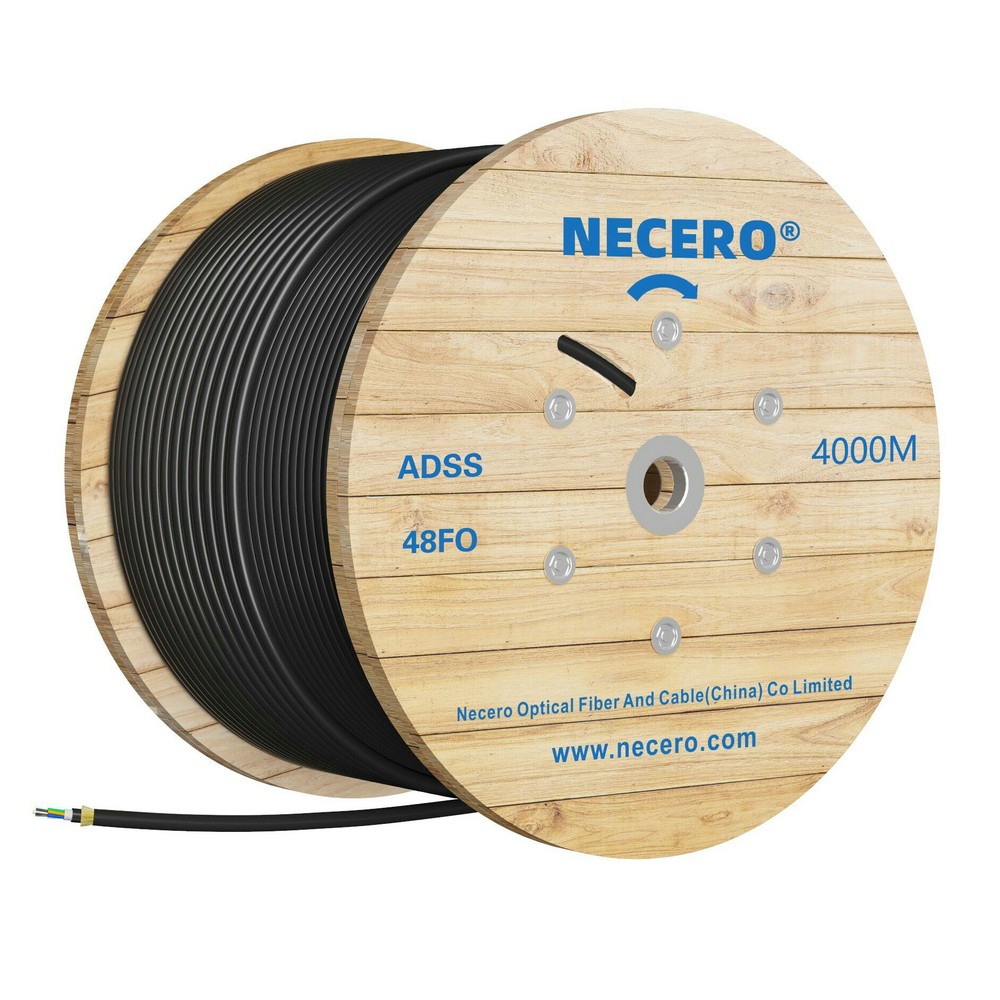

  • 1000x1000 en.jpg

  •

    ADSS cable adopts the twisted structure of loose sleeve layer, 250 μm optical fiber is inserted into the loose tube made of high modulus materials, and the loose tube is filled with waterproof compounds.  The loose tube ( and filling rope ) is twisted around the non-metallic center reinforcing core ( FRP ) to synthesize a compact cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking belt longitudinally wrapped by the cable core, and then the aramid fiber that plays a reinforcing role is twisted. Finally, the polyethylene ( PE ) outer sheath or the electric mark ( AT ) outer sheath is extruded.





  •

  • · Continuous  electrical erection
    ·  Superior resistance to electric marks with AT sheath
    · Light  weight, small cable diameter, reduced ice, wind impact and load on tower,  support
    ·  Excellent tensile and temperature properties
     · Life  expectancy up to 30 years



  • The design of ADSS cable takes full account of the actual situation of power lines and is suitable for different grades of high voltage transmission lines.  Polyethylene ( PE ) sheath can be used for 10 kV and 35 kV power lines.  For 110 kV and 220 kV power lines, the optical cable hanging point must be determined by calculating the electric field strength distribution and the electric mark ( AT ) outer sheath must be adopted.  At the same time, the amount of aramid fiber and the perfect stranding process were carefully designed to meet the application requirements of different spans.



  • The ADSS cable follows the IEEE P 1222 technical standard, and meets the IEC 60794-1 standard and DLT 788-2016 standard.



  •

    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation
               (+20℃)

    @850nm





    ≤3.0    dB/km

    ≤3.0    dB/km

    @1300nm





    ≤1.0    dB/km

    ≤1.0    dB/km

    @1310nm

    ≤0.00    dB/km

    ≤0.00dB/km





    @1550nm

    ≤0.00    dB/km

    ≤0.00dB/km





    Bandwidth(Class A)

    @850nm





    ≥500    MHz·km

    ≥200    MHz·km

    @1300nm





    ≥500    MHz·km

    ≥500    MHz·km

    Numerical aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cutoff Wavelength

    ≤1260nm

    ≤1480nm







  • Cable Diameter

    mm

    Cable Weight
               kg/km

    Recommend maximum working tension

    kN

    Maximum allowable working tension

    kN

    breaking tenacity

    kN

    Section area of tensile components

    mm2

    modulus of elasticity

    kN/ mm2

    thermal expansion coefficient ×10-6 /k

    PE sheath

    AT sheath

    9.8

    121

    130

    1.5

    4

    10

    4.6

    7.6

    1.8

    10.2

    129

    138

    2.1

    5

    14

    6.9

    8.1

    1.4

    13.1

    132

    143

    2.8

    7

    19

    9.97

    9.13

    1.2

    15.6

    189

    207

    3.8

    9

    26

    14.2

    11.2

    1.0




  • Package.jpg



  • ADSS.jpg
