Figure 8 Cable ( GYFTC8S)




  • Description of the product



  • GYFTC8S_ENX1000X1000.jpg


  •

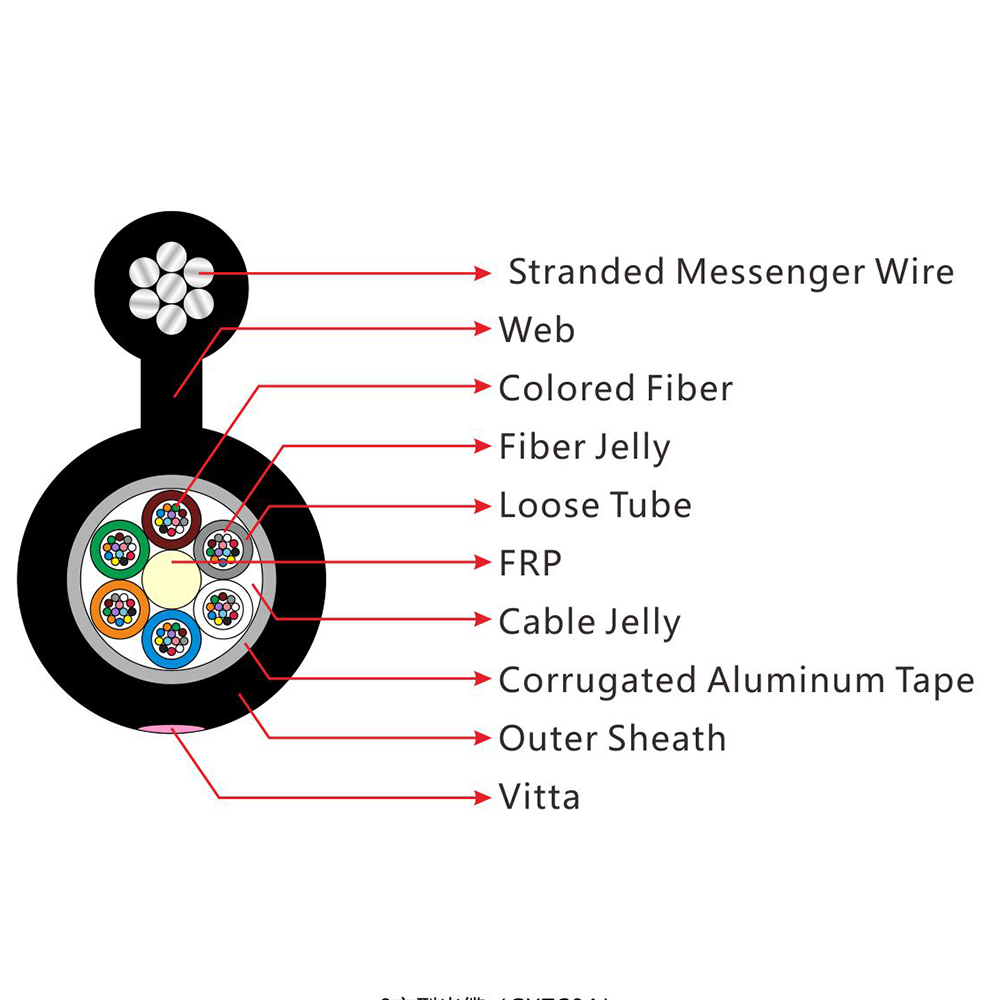

    The fibers,  250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Steel tape (SPS) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.



  •

  • · High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
                        installation cost.

             · Good mechanical and temperature performance

            · High strength loose tube that is hydrolysis resistant

            · Special tube filling compound ensure a critical protection of fiber

            · The following measures are taken to ensure the cable watertight:

                    - Steel wire used as the central strength member

                    - Loose tube filling compound

                    - 100% cable core filling

                    - Steel tape moisture barrier





  • GYFTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.



  •


                                G.652

    G.655

    50/125μm

    62.5/125μm





    Attenuation
                 (+20℃)

    @850nm





    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm





    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.36 dB/km

    ≤0.40 dB/km





    @1550nm

    ≤0.22 dB/km

    ≤0.23dB/km





    Bandwidth (Class A)

    @850nm





    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm





    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off    Wavelength

    ≤1260nm

    ≤1480nm







  •

  • Cable Type

    Fiber Count

    Tubes

    Fillers

    Cable Diameter
               mm

    Cable Weight kg/km

    Tensile Strength
               Long/Short Term               N

    Crush Resistance
               Long/Short Term
               N/100mm

    Bending Radius
               Static
                              /Dynamic
               mm



    GYFTC8S-2~12

    2~12

    1

    4

    9.5*16.5

    218

    600/1500

    300/1000

    10D/20D



    GYFTC8A-14~24

    14~24

    2

    3

    9.5*16.5

    218

    600/1500

    300/1000

    10D/20D



    GYFTC8A-26~36

    26~36

    3

    2

    9.5*16.5

    218

    600/1500

    300/1000

    10D/20D



    GYFTC8A -38~48

    38~48

    4

    1

    9.5*16.5

    218

    600/1500

    300/1000

    10D/20D



    GYFTC8A-50~60

    50~60

    5

    0

    9.5*16.5

    218

    600/1500

    300/1000

    10D/20D



    ***

    ***

    ***

    ***

    ***

    ***

    ***

    ***

    ***

    Storage/Operating Temperature : -40℃ to + 70℃
