Outdoor Optical Cable

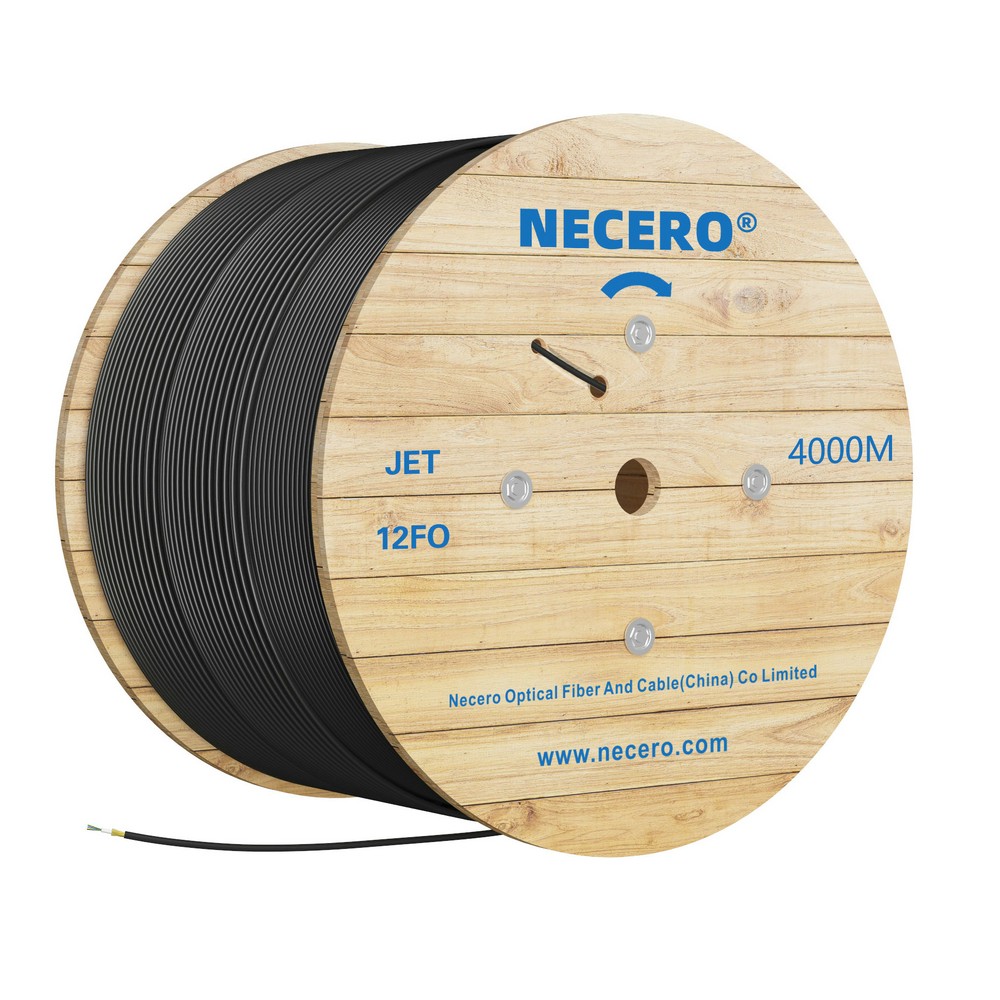

Indoor/outdoor unitube non-metallic micro cable(JET)
- Description of the product

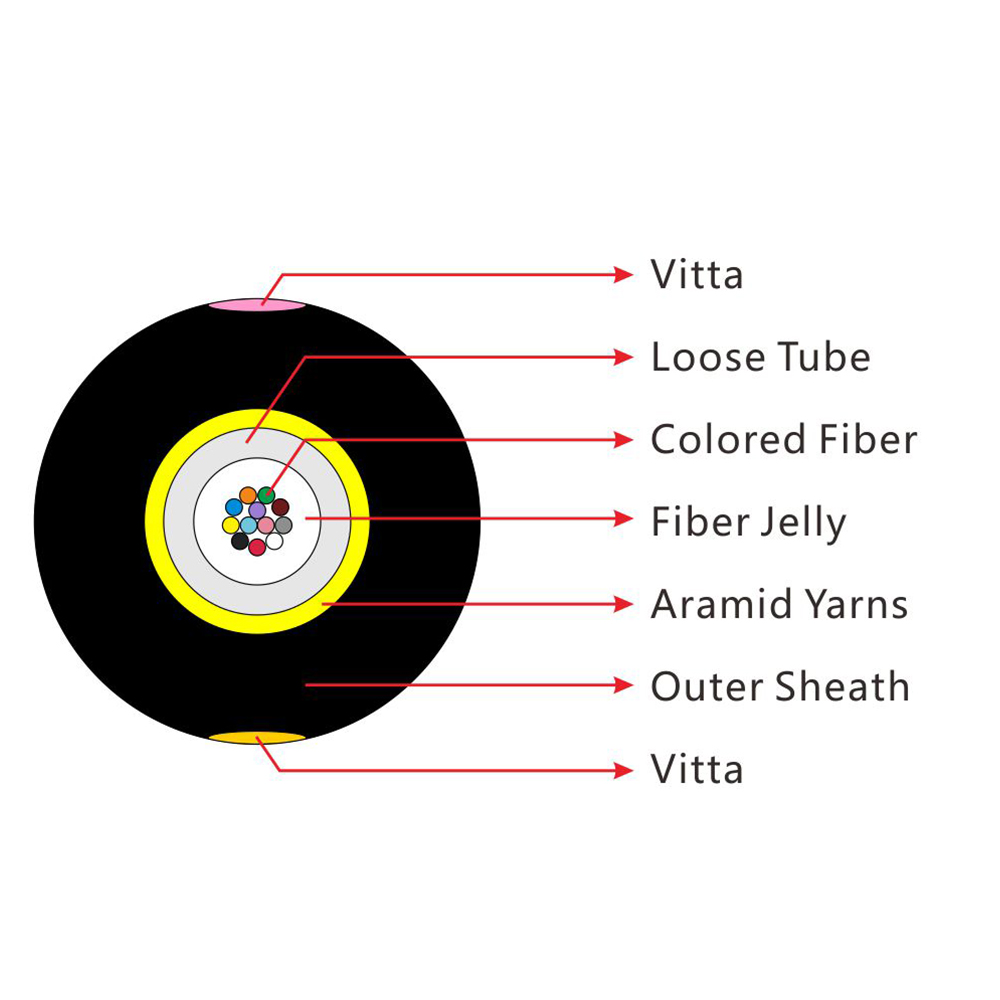

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.
· Non-mental design can prevent the cable from radio interference and magnetic wave interference
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Aramid yarn ensures good performance of tensile strength
· Loose tube filling compound ensure good moisture resistance performance
· Good flexibility
· High dense fiber packed, small diameter and light weight; it's the better option for blowing
installation process
Adopted to backbone network, access network and fiber to the home.
G.652G.655
50/125μm OM2
62.5/125μm
Attenuation
(+20℃)
@850nm
≤3.0 dB/km
≤3.0 dB/km
@1300nm
≤1.0 dB/km
≤1.0 dB/km
@1310nm
≤0.36 dB/km
≤0.40 dB/km
@1550nm
≤0.22 dB/km
≤0.23dB/km
Bandwidth (Class A)
@850nm
≥500 MHz·km
≥200 MHz·km
@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260nm
≤1480nm
Storage/Operating Temperature : -40℃ to + 70℃
