Unitube Non-metallic Non-armored Cable(GYFXY)




  • Description of the product



  • GYFXY1-EN_1000x1000.jpg

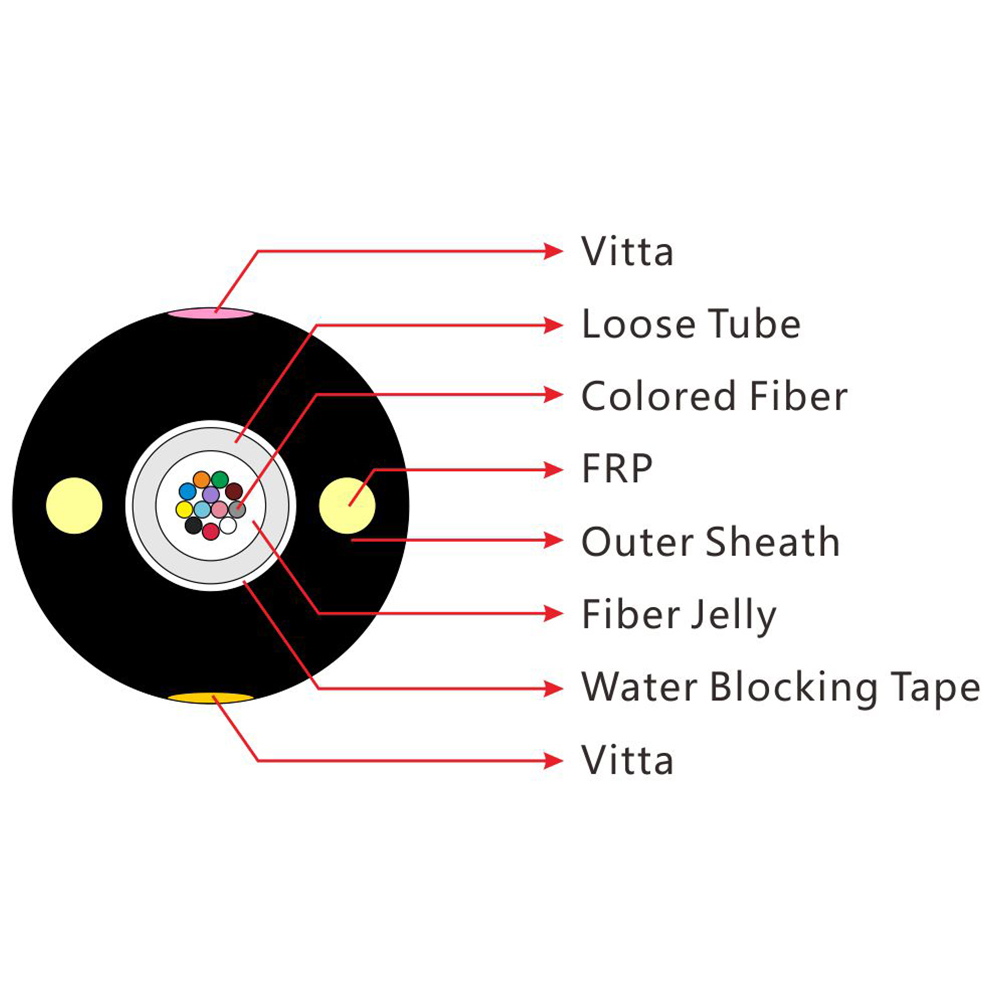

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.







           · Good mechanical and temperature performance

            · High strength loose tube that is hydrolysis resistant

            · Special tube filling compound ensure a critical protection of fiber

            · Two parallel FRPs ensure tensile strength

            · PE sheath protects cable from ultraviolet radiation

            · Small diameter, light weight and friendly installation

            · Long delivery length





    GYFXY cable complies with Standard YD/T 769-2003.






                   G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20)

    @850nm





    3.0 dB/km

    3.0 dB/km

    @1300nm





    1.0 dB/km

    1.0 dB/km

    @1310nm

    0.36 dB/km

    0.40 dB/km





    @1550nm

    0.22 dB/km

    0.23dB/km





    Bandwidth (Class A)

    @850nm





    500 MHz·km

    200 MHz·km

    @1300nm





    1000 MHz·km

    600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength

    1260nm

    1480nm







  •

    Cable Type

    (Increased by 2 fibers)

    Fiber Count

    Cable Diameter

    mm

    Cable Weight kg/km

    Tensile Strength

    Long/Short Term

     N

    Crush Resistance

    Long/Short Term

    N/100mm

    Bending Radius

    Static
                     /Dynamic

    mm

    GYFXY -2~12

    2~12

    10.2

    100

    400/1000

    300/1000

    10D/20D

    Storage/Operating Temperature : -40℃ to + 70℃
