TWO FRP Aerial Fiber Optic Cable (GYFFY)




  • Description of the product

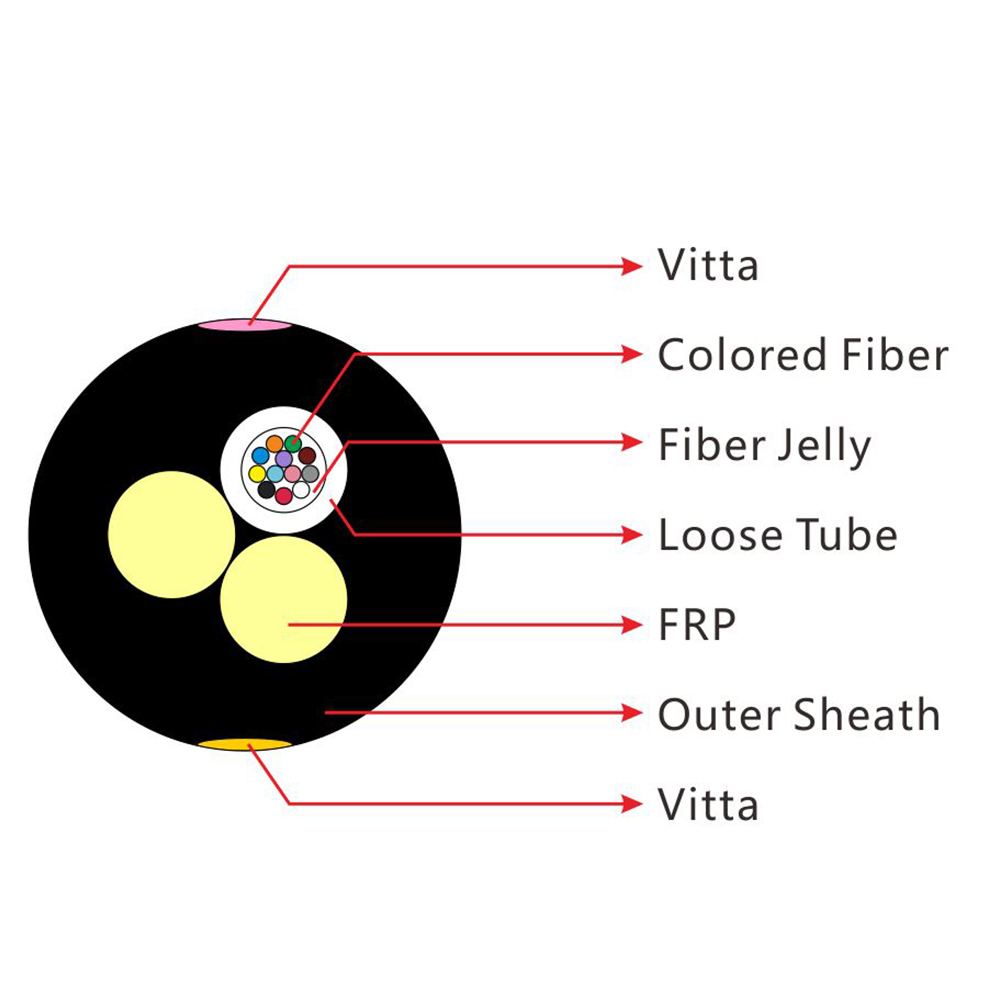

  • GYFFY_EN_1000X1000.jpg



  • The cable structure is put the ф250μm colored fiber in the PBT loose tube, and two FRP as strengthen member, Cable surface is extruded with a PE outer sheath.。



  •

  • ·Small Size and Ligth Weight
         ·Two FRP as strength member to provide good tensile performance
         ·Gel Filled or gel free , good waterproof performance
         ·Low price ,high fiber capacity
         ·applicable for short span aerial and duct installation

  •



  • GYFFY fiber Optic cable according to YD/T 901-2018、GB/T13993 、IECA-596、GR-409、IEC794 and so on standard

  •



  •

    G.652

    G.655

    50/125μm

    62.5/125μm

    Atenuation
                 (+20℃)

    @850nm





    ≤3.0dB/km

    ≤3.0dB/km

    @1300nm





    ≤1.0dB/km

    ≤1.0dB/km

    @1310nm

    ≤0.36dB/km







    @1550nm

    ≤0.22dB/km

    ≤0.23dB/km





    Bandwidth
                 (Class A)

    @850





    ≥200MHZ·km

    ≥200MHZ·km

    @1300





    ≥500MHZ·km

    ≥500MHZ·km

    Numerical Aperture







    0.200±0.015NA

    0.275±0.015NA

    Cable cut-off wavelength



    ≤1260nm

    ≤1480nm





  •



  • Cable Core

    Unit

    2F

    4F

    6F

    8F

    10F

    12F

    No. Of Tubes



    1

    1

    1

    1

    1

    1

    No. Of fibers

    core

    2

    4

    6

    9

    10

    12

    Fiber Counts in tube

    core

    2

    4

    6

    9

    10

    12

    Cable Diameter

    mm

    6.6±0.5

    6.8±0.5

    Cable Weight

    Kg/km

    40±10

    45±10

    Allowable tensile Strength

    N

    Span=80,1.5*P

    Allowable crush resistance

    N

    1000N

    Operation temperature

    -20℃ to +65℃

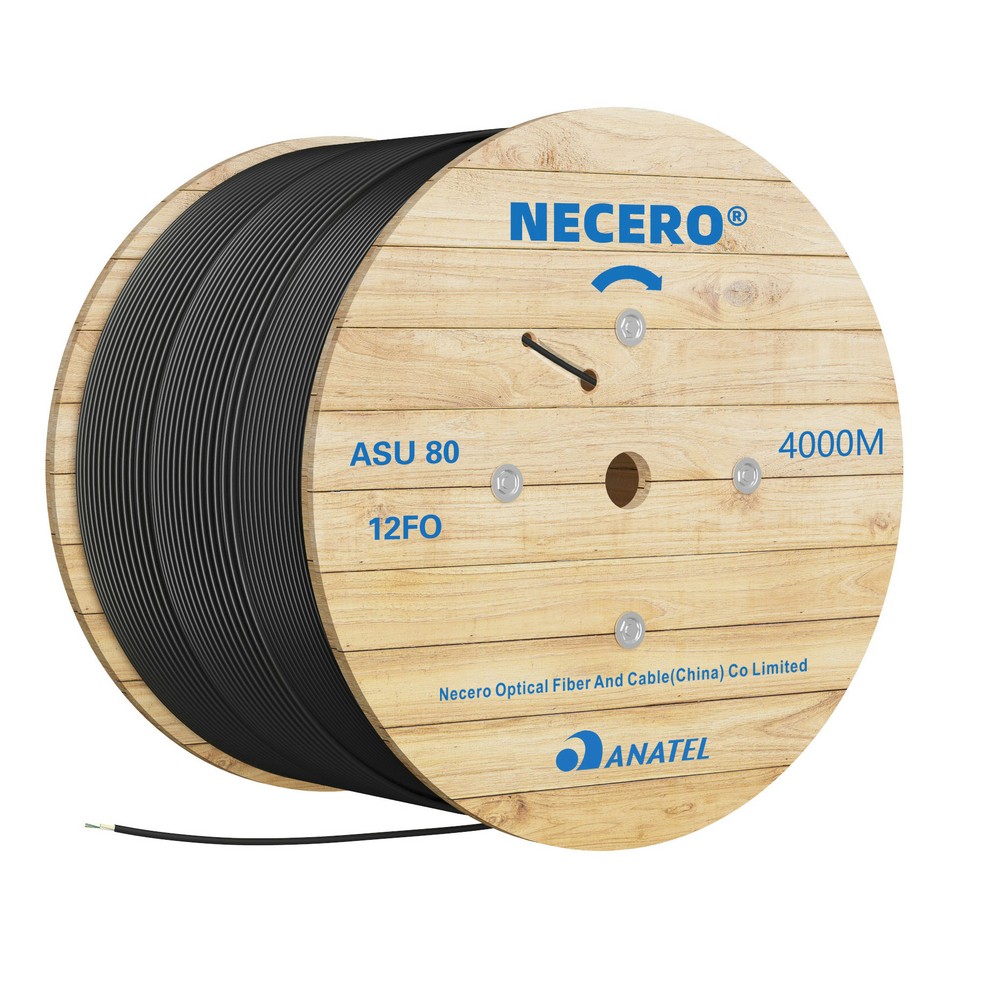

  • Package.jpg



  • GYFFY.jpg
