Stranded Loose Tube Armored Cable(GYTA53)




  • Description of the product

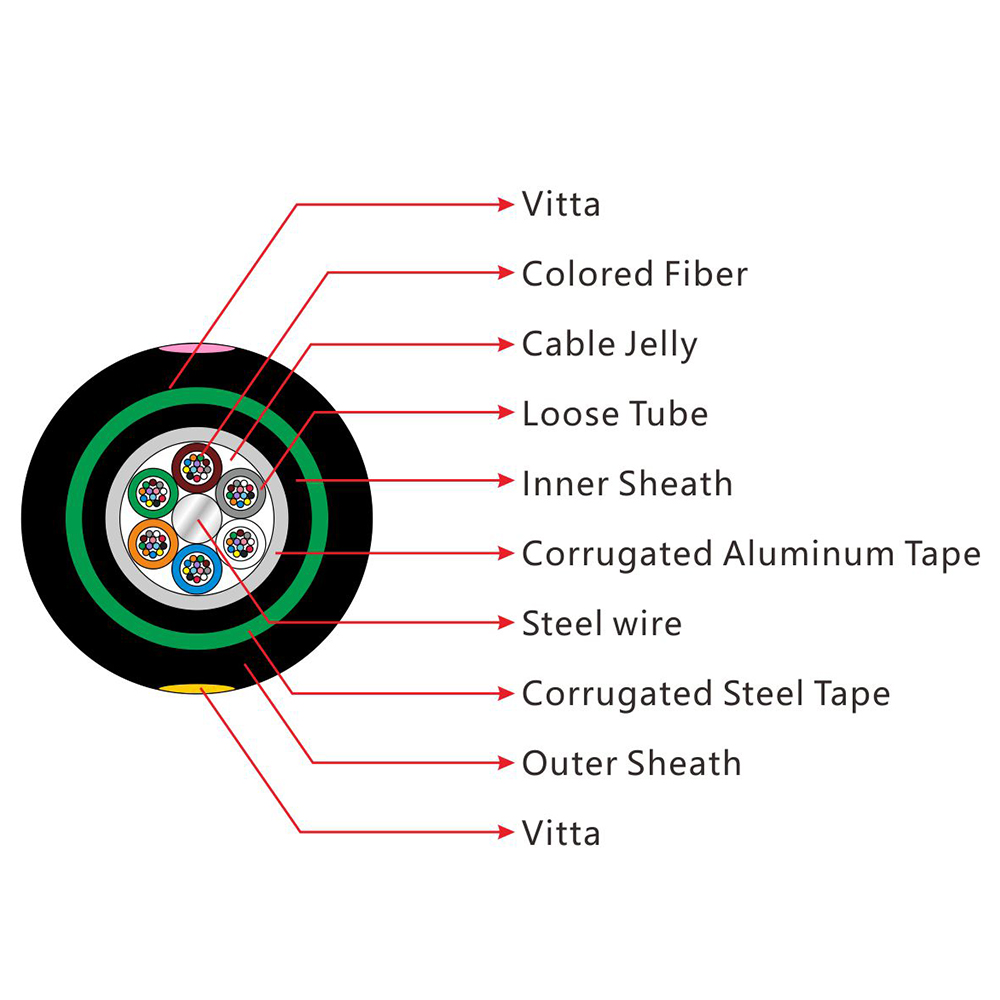

  • GYTA53_EN_1000X1000.jpg


  • The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.





  •

      · Good mechanical and temperature performance

            · High strength looes tube that is hydrolysis resistant

            · Special tube filling compound ensure a critical protection of fiber

            · Crush resistance and flexibility

            · The following measures are taken to ensure the cable watertight:

                    - Steel wire used as the central strength member

                    - Loose tube filling compound

                    - 100% cable core filling

                    - PSP enhancing moisture-proof

                    - Water-blocking material







    GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.








                   G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20)

    @850nm





    3.0 dB/km

    3.0 dB/km

    @1300nm





    1.0 dB/km

    1.0 dB/km

    @1310nm

    0.36 dB/km

    0.40 dB/km





    @1550nm

    0.22 dB/km

    0.23dB/km





    Bandwidth (Class A)

    @850nm





    500 MHz·km

    200 MHz·km

    @1300nm





    1000 MHz·km

    600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength

    1260nm

    1480nm









    Cable Type

    Fiber Count

    Tubes

    Fillers

    Cable Diameter

    mm

    Cable Weight kg/km

    Tensile Strength

    Long/Short Term N

    Crush Resistance

    Long/Short Term

    N/100mm

    Bending Radius

    Static
                     /Dynamic

    mm

    GYTY53-2~6

    2~6

    1

    5

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-8~12

    8~12

    2

    4

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-14~18

    14~18

    3

    3

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-20~24

    20~24

    4

    2

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-26~30

    26~30

    5

    1

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-32~36

    32~36

    6

    0

    13.8

    188

    1000/3000

    1000/3000

    10D/20D

    GYTY53-38~48

    38~48

    4

    1

    14.6

    206

    1000/3000

    1000/3000

    10D/20D

    GYTY53-50~60

    50~60

    5

    0

    14.6

    206

    1000/3000

    1000/3000

    10D/20D

    GYTY53-62~72

    62~72

    6

    0

    15.0

    215

    1000/3000

    1000/3000

    10D/20D

    GYTY53-74~84

    74~84

    7

    1

    16.4

    254

    1000/3000

    1000/3000

    10D/20D

    GYTY53-86~96

    86~96

    8

    0

    16.4

    254

    1000/3000

    1000/3000

    10D/20D

    GYTY53-98~108

    98~108

    9

    1

    17.8

    290

    1000/3000

    1000/3000

    10D/20D

    GYTY53-110~120

    110~120

    10

    0

    17.8

    290

    1000/3000

    1000/3000

    10D/20D

    GYTY53-122~132

    122~132

    11

    1

    19.5

    340

    1000/3000

    1000/3000

    10D/20D

    GYTY53-134~144

    134~144

    12

    0

    19.5

    340

    1000/3000

    1000/3000

    10D/20D

    GYTY53-146~216

    146~216





    19.5

    345

    1000/3000

    1000/3000

    10D/20D

    Storage/Operating Temperature : -40℃ to + 70℃

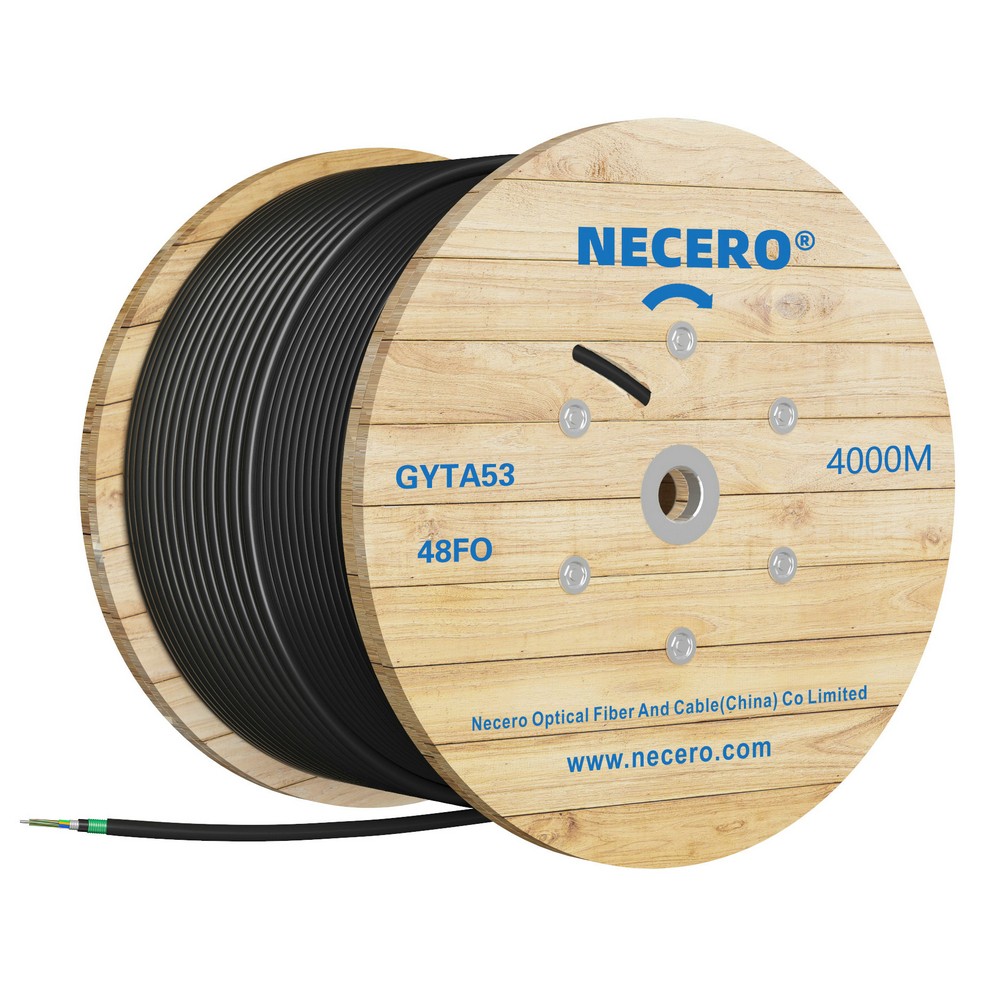

  • Package.jpg



  • GYTA53.jpg
