Figure 8 Cable(GYTC8A)




  • Description of the product



  • GYTC8A_ENX1000X1000.jpg


  •

    The fibers,  250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.



  •

  • · High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
                        installation cost.

             · Good mechanical and temperature performance

            · High strength loose tube that is hydrolysis resistant

            · Special tube filling compound ensure a critical protection of fiber

            · The following measures are taken to ensure the cable watertight:

                    - Steel wire used as the central strength member

                    - Loose tube filling compound

                    - 100% cable core filling

                    - APL moisture barrier





  • GYTC8A cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.



  •


                   G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20)

    @850nm





    3.0 dB/km

    3.0 dB/km

    @1300nm





    1.0 dB/km

    1.0 dB/km

    @1310nm

    0.36 dB/km

    0.40 dB/km





    @1550nm

    0.22 dB/km

    0.23dB/km





    Bandwidth (Class A)

    @850nm





    500 MHz·km

    200 MHz·km

    @1300nm





    1000 MHz·km

    600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength

    1260nm

    1480nm







  •

  • Cable Type

    Fiber Count

    Tubes

    Fillers

    Cable Diameter

    mm

    Cable Weight kg/km

    Tensile Strength

    Long/Short Term            N

    Crush Resistance

    Long/Short Term

    N/100mm

    Bending Radius

    Static
                   /Dynamic

    mm

    GYTC8A-2~6

    2~6

    1

    4

    9.5×18.3

    218

    600/1500

    300/1000

    10D/20D

    GYTC8A-8~12

    8~12

    2

    3

    9.5×18.3

    218

    600/1500

    300/1000

    10D/20D

    GYTC8A-14~18

    14~18

    3

    2

    9.5×18.3

    218

    600/1500

    300/1000

    10D/20D

    GYTC8A -20~24

    20~24

    4

    1

    9.5×18.3

    218

    600/1500

    300/1000

    10D/20D

    GYTC8A-26~30

    26~30

    5

    0

    9.5×18.3

    218

    600/1500

    300/1000

    10D/20D

    Storage/Operating Temperature : -40℃ to + 70℃

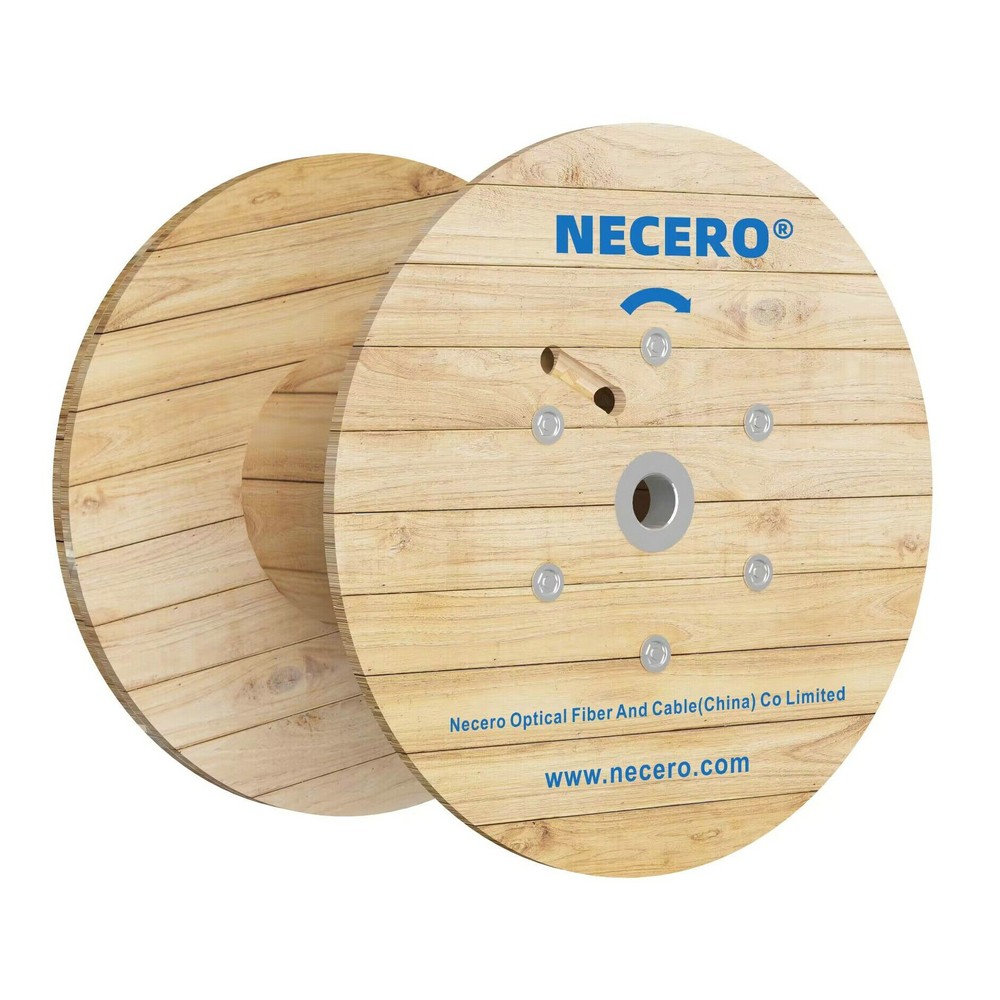

  • Package.jpg
