Indoor Simplex Armored Optical Fiber Cable(GJSFJV)




  • Description of the product



  • 室内铠-01-gjfjkv.jpg

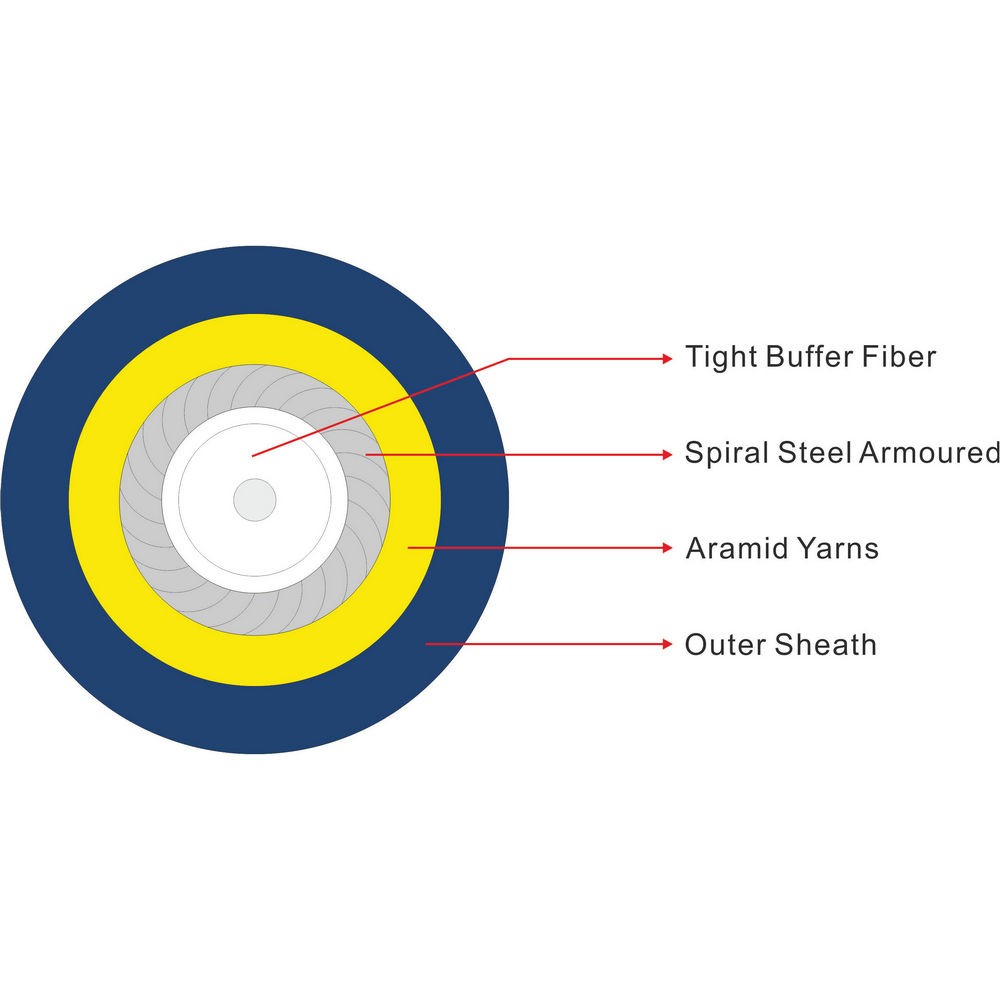

  • GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

  •

  •

    ·Stainless steel wires enhance the crush resistance of the cable and anti-rodent
    ·High strength aramid yarn,high performance outer sheath
    ·Small bending radius,light weight,flexibility,and friendly installation.
    ·Good mechanical and environmental performance.
    ·Flame retardant outer sheath provide good safety.

  •

  •

    ·All kinds of connector
    ·Fiber optic pigtails, patch cords.
    ·Fiber optic equipment and instrument
    ·Indoor cabling,building cabling,LAN, etc
    ·Long distance, outdoor/indoor cabling, trunking,etc
    ·Backbone network to the equipment in the building
    ·The cabling from desk or under the carpet to ceiling
    ·Small bending radius,large capacity,multi user indoor installation,unit  cabling,independent using,convenient connection with each end devices.
     ·Recommend high density wiring,small installation space and curvature



  •

  • GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.



  •


  •              G.652

    G.655

    50/125μm

    62.5/125μm



    Attenuation
                 (+20℃)

    @850nm





    ≤3.0dB/km

    ≤3.0dB/km

    @1300nm





    ≤1.0dB/km

    ≤1.0dB/km

    @1310nm

    ≤0.36dB/km

    ≤0.36dB/km





    @1550nm

    ≤0.22dB/km

    ≤0.23dB/km





    Bandwidth
                 (Class A)

    @850





    ≥500MHZ·km

    ≥200MHZ·km

    @1300





    ≥1000MHZ·km

    ≥600MHZ·km

    Numerical Aperture







    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength



    ≤1260nm

    ≤1480nm





  •

  •


                   Cable Type


                   Fiber Count


                   Tight  Diameter
                   mm


                   Cable Diameter
                   mm


                   Cable Weight
                   Kg/km


                   Tensile Strength
                   Long/Short Term N


                   Crush Resistance
                   Long/Short Term
                   N/100m


                   Bending Radius
                   Static/Dynamic
                   mm

    GJSFJV

    1

    0.6

    2.0

    11

    300/750

    200/1000

    20D/10D

    GJSFJV

    1

    0.6

    2.2

    12

    300/750

    200/1000

    20D/10D

    GJSFJV

    1

    0.6

    2.4

    13

    300/750

    200/1000

    20D/10D

    GJSFJV

    1

    0.9

    3.0

    15

    300/750

    200/1000

    20D/10D

    Storage/Operating Temperature : -20℃ to + 60℃
