Indoor multi-core armored cable (GJASFKV)




  • Description of the product



  • 室内铠-03-gjpfvkv.jpg

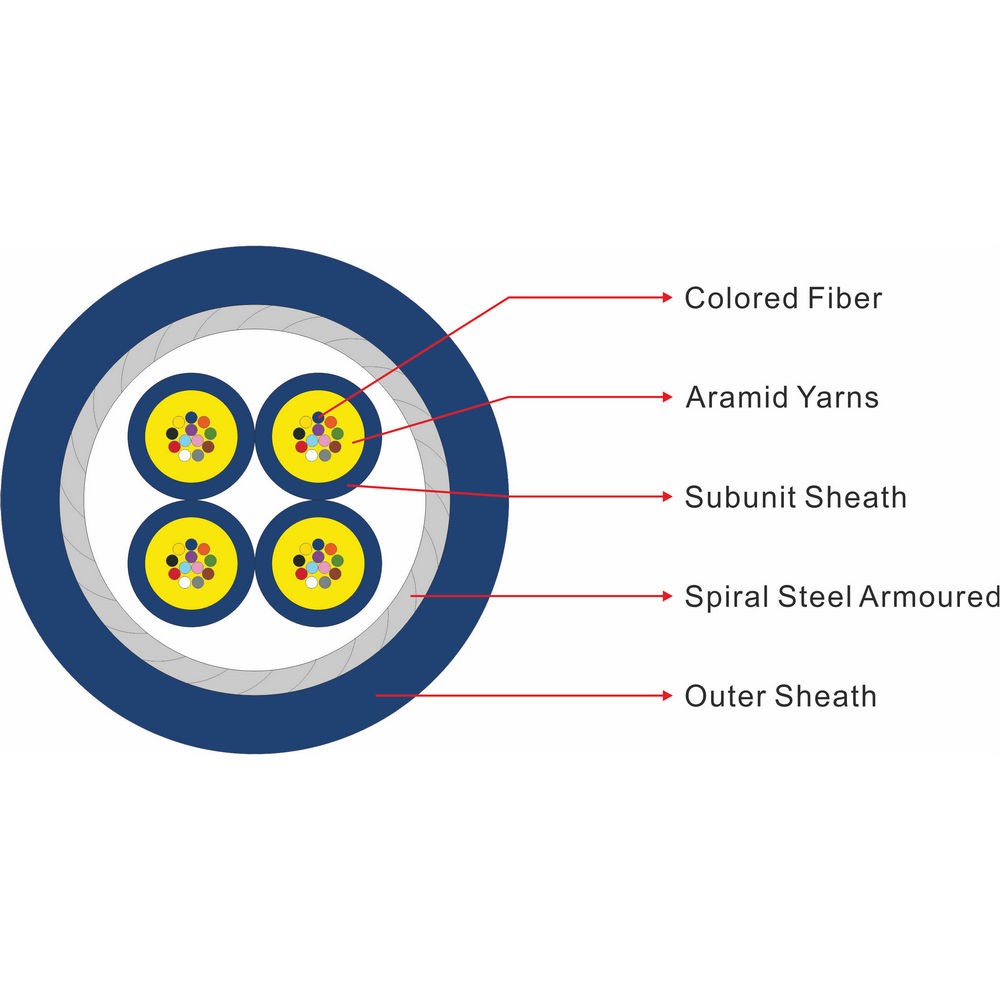

  • The structure of the optical fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath.

  •

  •

    Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
    Bending radius is small, light weight, soft, flexible, easy to follow.
    Flat wire armored to improve the optical cable compression and anti-rat ability.
    Has good mechanical and environmental performance.
    Flame retardant or non-flame retardant outer jacket to provide good safety protection.



  •

  • · Various conventional connector products.
     Pigtail, jumper.
    Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
    Optical connection of optical equipment, instruments, etc.
     Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
    · Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
    The backbone of the tail cable, access to the equipment inside the building.
    · Small installation space and occasional wiring.



  •

  • · GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.



  •


                   G.652

    G.655

    50/125 μm

    62.5 / 125 μm



    Attenuation
                   (+ 20 ° C)

    @ 850nm

    ≤3.0dB / km

    ≤3.0dB / km

    @ 1300nm

    ≤1.0dB / km

    ≤1.0dB / km

    @ 1310nm

    ≤0.36dB / km

    -

    @ 1550nm

    ≤0.22dB / km

    ≤0.23dB / km

    Bandwidth
                   (Class A)

    @ 850

    ≥ 500MHZ · km

    ≥ 500MHZ · km

    @ 1300

    ≥1000MHZ · km

    ≥600MHZ · km

    Numerical aperture

    0.200 ± 0.015NA

    0.275 ± 0.015 NA

    Cable cut-off wavelength

    ≤1260nm

    ≤1480nm



  •

  • Cable type
                 Cable Type

    Fiber number
                 Fiber Count


                 Subunit outer diameter  Subunit Diameter
                 mm

    Cable diameter
                 Cable a Diameter
                 mm

    Cable weight
                 Cable Weight
                 Kg / km

    Allowable tension
                 Tensile Strength
                 Long / Short Long / Short Term N

    Allowable pressure
                 Crush Resistance
                 Long / Short
                 Long / Short Term N / 100m

    Bending radius

                 Bending Radius
                 Static / Dynamic
                 Static / Dynamic mm

    GJFJV + SV

    twenty four

    7.0

    5.0

    64

    300/750

    200/1000

    20D / 10D

    GJFJV + SV

    48

    10.0

    6.0

    100

    300/750

    200/1000

    20D / 10D




  • Transport temperature

    -20 ℃ ~ +60 ℃

    storage temperature

    -20 ℃ ~ +60 ℃

    Installation temperature

    -5 ℃ ~ +50 ℃

    Operating temperature

    -20 ℃ ~ +60 ℃

    Storage/Operating Temperature : -20℃ to + 60℃
