Air Blowing Fiber Optic Cable
Center tube micro cable
- Description of the product

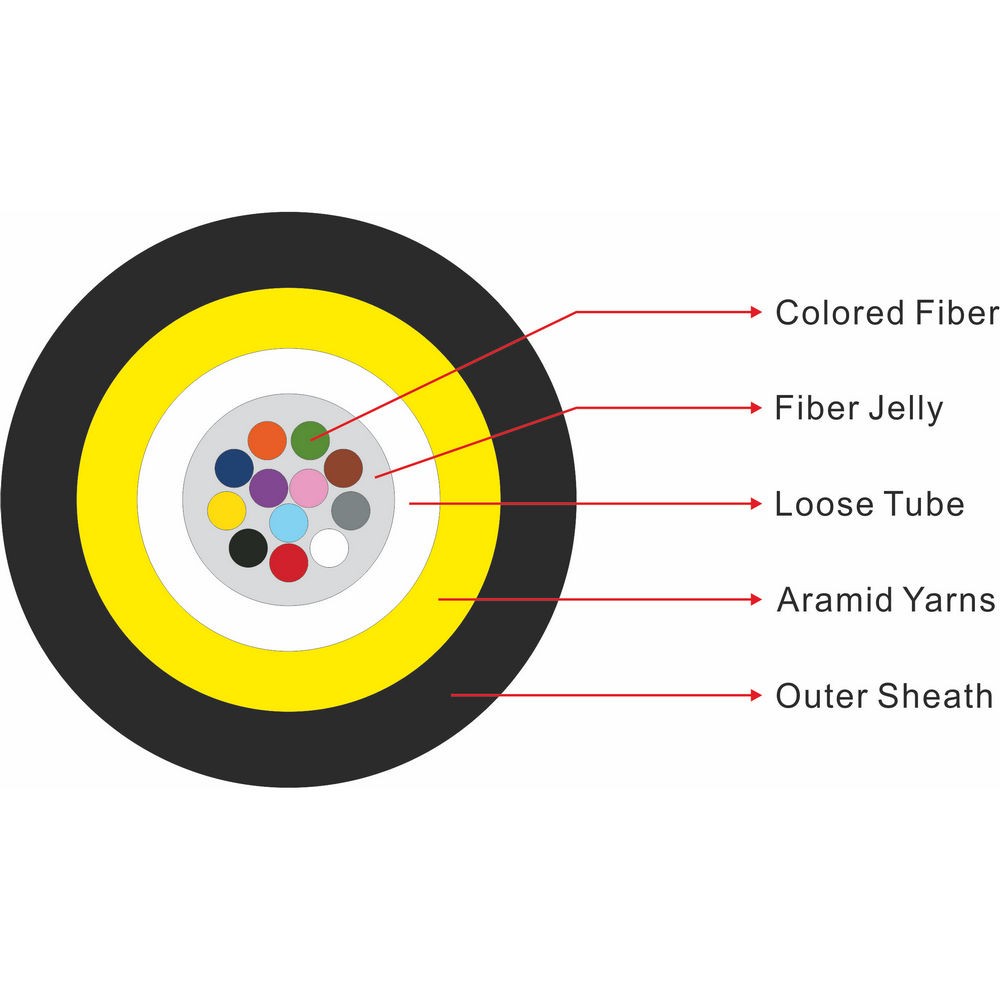

Conventional center tube micro cable
Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Fiber: G.G652D, G.657A1, G657A2 & multimode fiber
P/N
Fiber count
(F)Nominal diameter
(mm)Nominal weight
(kg/km)Max tensile strength
(N)Temperature
(℃)MICROC-2G652D-PE
2
4.0±0.1
10
120
-40 to +60
MICROC-4G652D-PE
4
4.0±0.1
10
120
MICROC-6G652D-PE
6
4.0±0.1
10
120
MICROC-8G652D-PE
8
4.0±0.1
10
120
MICROC-12G652D-PE
12
4.0±0.1
10
120
MICROC-24G652D-PE
24
4.5±0.1
14
150
Fiber count
(F)Blowing machine
Suitable microduct
(mm)Blowing pressure
(bar)Blowing distance
in 7/5.5 duct (m)Blowing distance
in 10/8 duct (m)2 to 12
PLUMETTAZ PR-196
or PR-1407/5.5 or 10/8
15
1500
2500
14 to 24
7/5.5 or 10/8
1300
2200
MICROC: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material
