PLC Splitter
Bare Fiber 250μm type PLC Fiber Splitter No Connector
- Description of the product
No Connector 1x(2,4...128) or 2x(2,4...128). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS
1X N（N≥2）
PARAMETERS1×2
1×4
1×8
1×16
1×32
1×64
1×128
Wavelength (nm)
1260～1650
Fiber type
G657A 1or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤3.8
≤7.2
≤10.3
≤13.6
≤16.9
≤20.4
≤23.5
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40～85
Store temp. ( ℃)
-40～85
bare fiber
40×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(Lx W x H)mm
55×7×4
60×12×4
80×20×6
100×40×6
120*50*12
2X N（N≥2）
PARAMETERS2×2
2×4
2×8
2×16
2×32
2×64
2×128
Wavelength (nm)
1260～1650
Fiber type
G657A 2 or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤4.2
≤7.5
≤10.6
≤13.9
≤17.2
≤20.8
≤23.8
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40～85
Store temp. ( ℃)
-40～85
bare fiber
50×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(LxWxH)mm
60×7×4
60×12×4
80×20×6
100×40×6
120*50*12
Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss
● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK

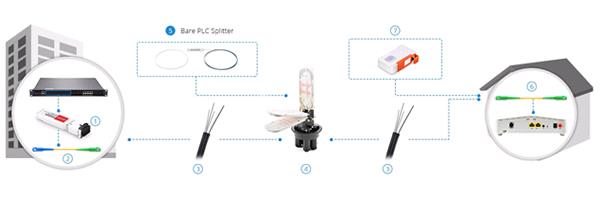

● High reliability/Monitoring/other Network systems1x(2,4...128) or 2x(2,4...128) Bare PLC Splitter in FTTH Solution: The bare PLC splitter can allow a single GPON network interface to be shared among many subscribers and allow service providers to enable bandwidth-intensive applications. The following figure shows 1X4 bare PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

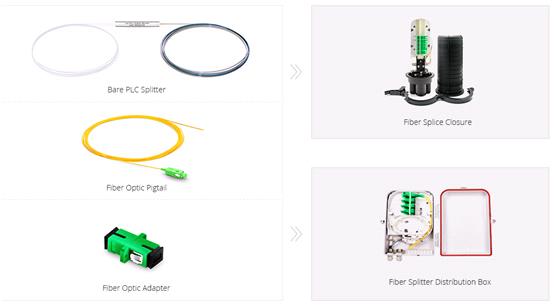

Simple and Easy Connection:Bare PLC splitter can be easily installed in fiber splice closure or fiber splitter distribution box for space saving.
