PLC Splitter
ABS Box type PLC Fiber Splitter
- Description of the product
1x(2,4...128) or 2x(2,4...128) (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. (ABS type: No connector, SC/UPC, SC/APC...FC can be choosen)
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS
1X N（N≥2）
PARAMETERS1×2
1×4
1×8
1×16
1×32
1×64
1×128
Wavelength (nm)
1260～1650
Fiber type
G657A 1or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤3.8
≤7.2
≤10.3
≤13.6
≤16.9
≤20.4
≤23.5
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40～85
Store temp. ( ℃)
-40～85
bare fiber
40×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(Lx W x H)mm
55×7×4
60×12×4
80×20×6
100×40×6
120*50*12
2X N（N≥2）
PARAMETERS2×2
2×4
2×8
2×16
2×32
2×64
2×128
Wavelength (nm)
1260～1650
Fiber type
G657A 2 or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤4.2
≤7.5
≤10.6
≤13.9
≤17.2
≤20.8
≤23.8
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40～85
Store temp. ( ℃)
-40～85
bare fiber
50×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(LxWxH)mm
60×7×4
60×12×4
80×20×6
100×40×6
120*50*12
Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss

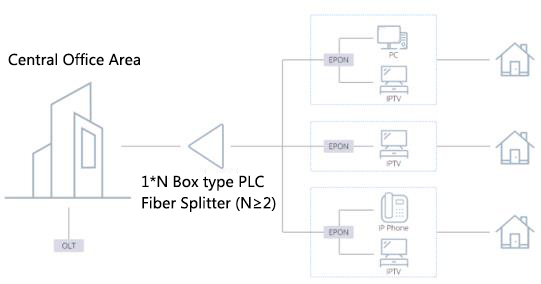

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systemsBest Alternative for FTTx Solution:Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
