Industrial Ethernet Switch
2*1000 Base-X, 8*10/100/1000Base-T Managed Industrial Switches
- Description of the product
The equipment is 2*1000 Base-X, 8*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fan cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
Provider Mode Ports
Fixed port
2*1000 Base-X， 8*10/100/1000 Base-T
Management Port
Support Console
Power interface
Phoenix terminal, redundant dual
LED Indicators
PWR，Link/ACT LED
Cable type&Transmission distance
Twisted-pair
0-100m（CAT5e,CAT6）
Monomode optical fiber
20/40/60/80/100KM
Multimode optical fibre
550m
Network Topology
Ring topology
Support
Star topology
Support
Bus topology
Support
Tree Topology
Support
Hybrid topology
Support
Electrical Specifications
Input voltage
DC12~58V
Total Power consumption
<10W
Layer 2 Switching
Switching capacity
36G
Packet forwarding rate
26.78Mpps
MAC address table
16K
VLAN
Support 4K
Buffer
8M
Forwarding delay
<10us
MDX/MIDX
Support
Flow control
Support
Jumbo Frame
Support 10Kbytes
Spanning Tree
Support STP/RSTP/MSTP
Ring Protocol
Support ERPS
Link Aggregation
Support 12 group
Multicast
Support IGMP Snooping
Port Mirroring
Support
Storm Control
Support
Interface Counters
Support
QINQ
Support
802.1X
Support
MAC Authentication
Support
Port Isolation
Support
Dying gasp
Support
DHCP CLIENT
Support
PING/TRACEROUT
Support
DDM
Support
Convergence
ACL
Support ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACLQoS
Support QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoSManagement
CLI
Support
Console
Support
Telnet
Support
WEB management
Support
SNMP
Support SNMPv1/v2c/v3
User Management
Support
System Log
Support
Configuration File Download/Upload
Support
Upgrade Firmware
Support
Environment
Operating temperature
-40℃~+75℃
The device is tested for 4 hours at temperatures in 85°CStorage temperature
-40℃~+85℃
Relative humidity
5%~95% （non-condensing）
Thermal methods
Fanless, natural cooling
MTBF
100,000 hours

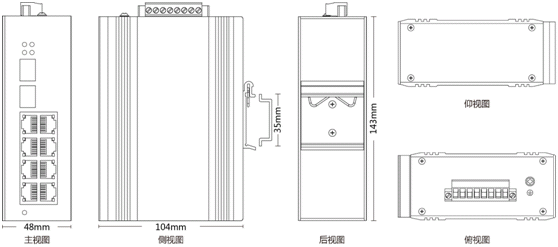

Mechanical Dimensions
Product size
143X104X48mm
Installation Method
DIN-rail
Weight
0.58KG
EMC&INGRESS PROTECTION
IP Level
IP40
Surge protection of Power
IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
Surge protection of Ethernet port
IEC 61000-4-5 Level 4（4KV/4KV）（10/700us）
RS
IEC 61000-4-3 Level 3（10V/m）
EFI
IEC 61000-4-4 Level 3（1V/2V）
CS
IEC 61000-4-6 Level 3（10V/m）
PFMF
IEC 61000-4-8 Level 4（30A/m）
DIP
IEC 61000-4-11 Level 3（10V）
EMI
CLASS A
ESD
IEC 61000-4-2 Level 4（8K/15K）
Free fall
0.5m
Authentication
Authentication
CCC/CE/FCC/RoHS
Accessories
Accessories
Device, Terminals, Specification, Certificate
Adapter(optional)Optional Model
XPTN-9000-75-2GX8GP-V
2*1000Mbps SFP Ports,
8*10/100/1000M RJ45 Ports PoE
