5*10/100Base-T Unmanaged Industrial Switches




  • Description of the product




  •

  • This device 5*10/100Base-T Industrial Ethernet Switches, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.


  •

  •

  •





  • Input Voltage: DC12-58V
    Operating Temperature: -40℃ ~ +75℃
    Shell: IP40 protection, fanless design
    Test Report: CCC, RoHS, FCC, CE
    Anti-static: 8KV-15KV
     MTBF: 100000 Hour



  •

  • Provider Mode Ports

    Fixed port

    5*10/100Base-T

    Power interface

    Phoenix terminal, dual power supply

    LED Indicators

    P1/P2, OPT

    DIP Switch

    1 LFP

    Reserve

    2 LGY

    LEGACY (Standard & Non-standard PoE)

    3 VLAN

    Port Isolation

    4 BSR

    Storm Control Configuration



    Cable Type & Transmission Distance

    Twisted-pair

    0-100m(CAT5e,CAT6)

    Monomode optical fiber

    /

    Multimode optical fibre

    /

    Network Topology

    Ring topology

    Unsupported

    Star topology

    Support

    Bus topology

    Support

    Tree Topology

    Support

    Electrical Specifications

    Input voltage

    DC12-58V

    Total Power consumption

    <5W

    Layer 2 Switching

    Switching capacity

    1G

    Packet forwarding rate

    0.744Mpps

    MAC address table

    2K

    Buffer

    768K

    Forwarding delay

    <5us

    MDX/MIDX

    Support

    Flow control

    Support

    Jumbo frame

    2K bytes

    Storm Control

    Support

    Port Isolation

    Support

    Remote PD Reset

    Unsupported

    Environment

    Operating temperature

    -40℃~+75℃

    Storage temperature

    -40℃~+75℃

    Relative humidity

    10%~90% (non-condensing)

    Thermal methods

    Fanless, natural cooling

    MTBF

    100,000 hours

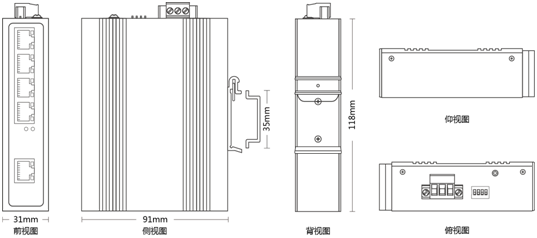

    Mechanical Dimensions

    Product size

    91*118*31mm (W×H×D)

    Installation Method

    DIN-rail

    Weight

    0.36KG around

    EMC & Ingress Protection

    IP Level

    IP40

    Surge protection of Power

    IEC 61000-4-5  Level 3 (4KV/2KV)(8/20us)

    Surge protection of Ethernet port

    IEC 61000-4-5  Level 3 (4KV/2KV)(10/700us)

    RS

    IEC 61000-4-3  Level 3(10V/m)

    EFI

    IEC 61000-4-4  Level 3(1V/2V)

    CS

    IEC 61000-4-6  Level 3(10V/m)

    PFMF

    IEC 61000-4-8  Level 4(30A/m)

    DIP

    IEC 61000-4-11  Level 3(10V)

    EMI

    CLASS A

    ESD

    IEC 61000-4-2  Level 4(8K/15K)

    Free fall

    0.5m



    Authentication

    Authentication

    CCC/CE/FCC/RoHS

    Accessories

    Accessories

    Device, Terminals, Specification, Certificate
                 Adapter(optional)





    Optional Model

    XPTN-9000-45-5TP-mini

    5*10/100M RJ45 Port, PoE support 802.3af & at
