2*1000Base-X, 8*10/100/1000Base-X Industrial Ethernet Switches




  • Description of the product



  •

  • This device is 2*1000Base-X & 8*10/100/1000Base-X Industrial Ethernet Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.



  •

  •



  • Input Voltage: DC12-58V
    Operating Temperature: -40℃ ~ +75℃
    Shell: IP40 protection, fanless design
    Test Report: CCC, RoHS, FCC, CE
    Anti-static: 8KV-15KV
    MTBF: 100000 Hour


  •



  • Provider Mode Ports

    Fixed port

    2*1000 Base-X, 8*10/100/1000Base-T

    Power interface

    Phoenix terminal, redundant dual power supply



    ssusupplysupply

    LED Indicators

    PWR, OPT, NMC, ALM

    DIP Switch

    1 C/D

    Remote PD Reset

    2 LGY

    Stand/Non-standard PoE Mode

    3 VLAN

    Port Isolation

    4 RST

    Reset

    Cable type & Transmission distance

    Twisted-pair

    0-100m(CAT5e,CAT6)

    Monomode optical fiber

    20/40/60/80/100KM

    Multimode (optical) fiber

    550m

    Network Topology

    Ring topology

    Unsupported

    Star topology

    Support

    Bus topology

    Support

    Tree Topology

    Support

    Hybrid topology

    Support

    Electrical Specifications

    Input voltage

    DC12-58V

    Total Power consumption

    <6W

    Voltage Alarm

    Support

    Layer 2 Switching

    Switching capacity

    26G

    Packet forwarding rate

    19.34Mpps

    MAC address table

    16K

    VLAN

    Unsupported

    Buffer

    2M

    Forwarding delay

    <5us

    MDX/MIDX

    Support

    Flow control

    Support

    Jumbo Frame

    Support 10K Bytes

    WatchDog

    Support

    Port Isolation

    Support

    Environment

    Operating temperature

    -40℃~+75℃
                   The device is tested for 4 hours at temperatures in 85℃

    Storage temperature

    -40℃~+85℃

    Relative humidity

    5%~95% non-condensing

    Thermal methods

    Fanless, natural cooling

    MTBF

    100,000 hours

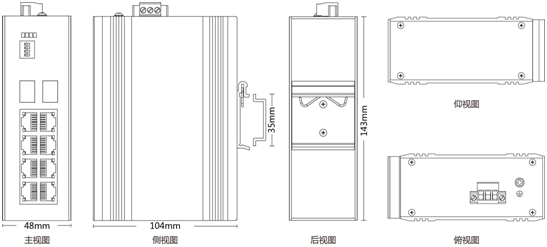

    Mechanical Dimensions

    Product size

    143X104X48mm

    Installation Method

    DIN rail

    Weight

    0.5KG around

    EMC & Ingress Protection

    IP Level

    IP40

    Surge protection of Power

    IEC 61000-4-5  Level X(6KV/6KV)(8/20us)

    Surge protection of Ethernet port

    IEC 61000-4-5  Level X(4KV/4KV)(10/700us)

    RS

    IEC 61000-4-3  Level 3(10V/m)

    EFI

    IEC 61000-4-4  Level 3(1V/2V)

    CS

    IEC 61000-4-6  Level 3(10V/m)

    PFMF

    IEC 61000-4-8  Level 4(30A/m)

    DIP

    IEC 61000-4-11  Level 3 (10V)

    ESD

    IEC 61000-4-2  Level 4(8K/15K)

    Free fall

    0.5m




    Authentication

    Authentication

    CCC, CE, FCC, RoHS

    Accessories

    Accessories



    Device, Terminals, Specification, Certificate, power adapter(optional)
                   (选配)



    Optional model

    XPTN-9000-65-2GX8GT

    2*1000Mbps SFP Port
                   8*10/100/1000Mbps RJ45 Port
