Industrial Ethernet Switch
1*100Base-X, 1*10/100Base-T Unmanaged Industrial Switches
- Description of the product
This device 1*100Base-X, 1*10/100Base-T Industrial Ethernet Switches, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Input Voltage: DC12-58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hour
Provider Mode Ports
Fixed port
1*100Base-X, 1*10/100Base-T
Power interface
Phoenix terminal, dual power supply
LED Indicators
P1/P2, OPT
DIP Switch
1 LFP
LFP/ Remote PD Reset
2 LGY
LEGACY (Standard & Non-standard PoE)
3 VLAN
Port Isolation
4 BSR
Storm Control Configuration
Cable Type & Transmission Distance
Twisted-pair
0-100m（CAT5e,CAT6）
Monomode optical fiber
20/40/60/80/100KM
Multimode optical fibre
550m
Network Topology
Ring topology
Unsupported
Star topology
Support
Bus topology
Support
Tree Topology
Support
Electrical Specifications
Input voltage
DC12-58V
Total Power consumption
<5W
Layer 2 Switching
Switching capacity
1G
Packet forwarding rate
0.744Mpps
MAC address table
2K
Buffer
768K
Forwarding delay
<5us
MDX/MIDX
Support
Flow control
Support
Jumbo frame
2K bytes
Storm Control
Support
LFP
Support
Port-Isolation
Support
Remote PD Reset
Unsupported
Environment
Operating temperature
-40℃~+75℃
Storage temperature
-40℃~+75℃
Relative humidity
10%~90% （non-condensing）
Thermal methods
Fanless, natural cooling
MTBF
100,000 hours

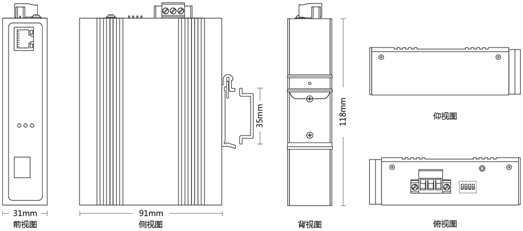

Mechanical Dimensions
Product size
91*118*31mm (W×H×D)
Installation Method
DIN-rail
Weight
0.36KG around
EMC & Ingress Protection
IP Level
IP40
Surge protection of Power
IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge protection of Ethernet port
IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
RS
IEC 61000-4-3 Level 3（10V/m）
EFI
IEC 61000-4-4 Level 3（1V/2V）
CS
IEC 61000-4-6 Level 3（10V/m）
PFMF
IEC 61000-4-8 Level 4（30A/m）
DIP
IEC 61000-4-11 Level 3（10V）
EMI
CLASS A
ESD
IEC 61000-4-2 Level 4（8K/15K）
Free fall
0.5m
Authentication
Authentication
CCC/CE/FCC/RoHS
Accessories
Accessories
Device, Terminals, Specification, Certificate
Adapter(optional)Optional Model
XPTN-9000-43-1FX1TP-mini
1*100Base-X SFP fiber port, 1*10/100M RJ45 Port, PoE support 802.3af & at
XPTN-9000-43-1FX1TP-SC- mini
1*100Base-X SC fiber port, 1*10/100M RJ45 Port, PoE support 802.3af & at
XPTN-9000-43-1FX1TP-FC- mini
1*100Base-X FC fiber port, 1*10/100M RJ45 Port, PoE support 802.3af & at
XPTN-9000-43-1FX1TP-ST- mini
1*100Base-X ST fiber port, 1*10/100M RJ45 Port, PoE support 802.3af & at
