NCR-8108T (1000M multi-mode duplex fiber) media convector used for the exchanging between Ethernet and fiber.The machine comprises 2 Ethernet port and 2 fiber port,and expanded the LAN cable transmission distance from 1000 meters to 2 kilometers. It realized the inter connections between different telecom equipment and widely been used in Telecommunication,CATV,Bandwidth network,CCTV where demands high performance and reliability network environment.

·  Special used for exchanging between Ethernet LAN cable and Fiber
·  Special made chip with low consumption,supporting over longtime frame
·  Superior Photoelectric integrated module which provide good optical and  electrical performance
·  Ensure the reliability of data transmitting,long operating life span
·  Support Internal and External:1.5U rack mount,optional installation method
·  Average of No trouble working time to 50000 hours,meet the ITU-T standard
·  Integrated  after selling services, 3  years warranty, lifetime Maintenance Service

·Standard:IEEE  802.3 10BaseT，IEEE 802.3u 100Base-TX，100Base-FX,IEEE 802.3z/AB 1000Base-T/SX/LX/ZX
·  Interface:Twisted pair cable:RJ45;Fiber:SC/ST/FC
·  1000 base LED:PWR, FX 1000，FX Link/Act，FDX，TX 1000，TX  Link/Act
·  Transmission Speed: LAN cable:10Mbps,100Mbps,1000Mbps.Fiber:1000Mbps
·  Duplex Way: Ethernet duplex or half duplex
·  Flow control: Full duplex IIEEE 802.3x flow control:Half duplex back flow  control
·  LAN Cable: Category 5,Category 5E,Category 6
 ·  Fiber Type: Multimode 50/125u，62.5/125u
 ·Power:AC:110v-240v  wide voltage input,50Hz;DC:12V 0.5A(Compatible 5-19V,6W),equipped with  USA,British,Europe,Austria total 4 types changeable plug
 ·  Environment Temperature：-20～65℃。
·  Storage Temperature：-20～70℃。
 · Humidity：5%～90%。

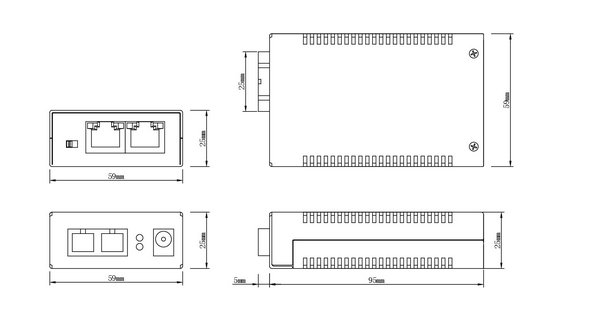

·  Size：86×48×22mm((H×D×W)。

·  IEEE 802.3 Ethernet
·  IEEE 802.3U Ethernet
·  IEEE 802.3ab Ethernet
·  IEEE 802.3z Ethernet
·  IEEE 802.1d Spanning Tree

·  Inter cities  fiber optic network:  Applied in telecom and CATV data network operators
·  Bandwidth application: Applied in Financial,governmental,oil,railway,power  grid,transportation,education special networks
· Data transmission:  image, voice, data comprehensive transmission,applicable for remote education,  video conference, CCTV surveillance control signal,image and data simultaneous  transmission
