NCR-5208A (100M single mode single-fiber duplex way) media convector used for the exchanging between Ethernet and fiber.The machine comprises 1 Ethernet port and 1 fiber port,and expanded the LAN cable transmission distance from 100 meters to 20 kilometers. It realized the inter connections between different telecom equipment and widely been used in Telecommunication,CATV,Bandwidth network,CCTV where demands high performance and reliability network environment.

· Special  used for exchanging between Ethernet LAN cable and Fiber
· Special  made chip with low consumption,supporting over longtime frame
· Superior  Photoelectric integrated module which provide good optical and electrical  performance
· Ensure  the reliability of data transmitting,long operating life span
· Support  Internal and External:1.5U rack mount,optional installation method
· Average  of No trouble working time to 50000 hours,meet the ITU-T standard
· Integrated  after selling services, 3 years warranty,  lifetime Maintenance Service

·Standard:IEEE  802.3 10BaseT，IEEE 802.3u 100Base-TX，100Base-FX,IEEE 802.3z/AB 1000Base-T/SX/LX/ZX
· Interface:Twisted  pair cable:RJ45;Fiber:SC/ST/FC
· 100  base LED:PWR, FX 100，FX Link/Act，FDX，TX 100，TX  Link/Act
·  Transmission Speed: LAN cable:10Mbps,100Mbps,Fiber:100Mbps
· Duplex  Way: Ethernet duplex or half duplex
· Flow  control: Full duplex IIEEE 802.3x flow control:Half duplex back flow control
· LAN  Cable: Category 5,Category 5E,Category 6
· Fiber  Type: Single mode 8.3/125u,8.7/125u,9/125u,10/125u
·Power:AC:110v-240v  wide voltage input,50Hz;DC:12V 0.5A(Compatible 5-19V,6W),equipped with USA,British,Europe,Austria  total 4 types changeable plug
· Environment  Temperature：-20～65℃。
· Storage  Temperature：-20～70℃。
· Humidity：5%～90%。

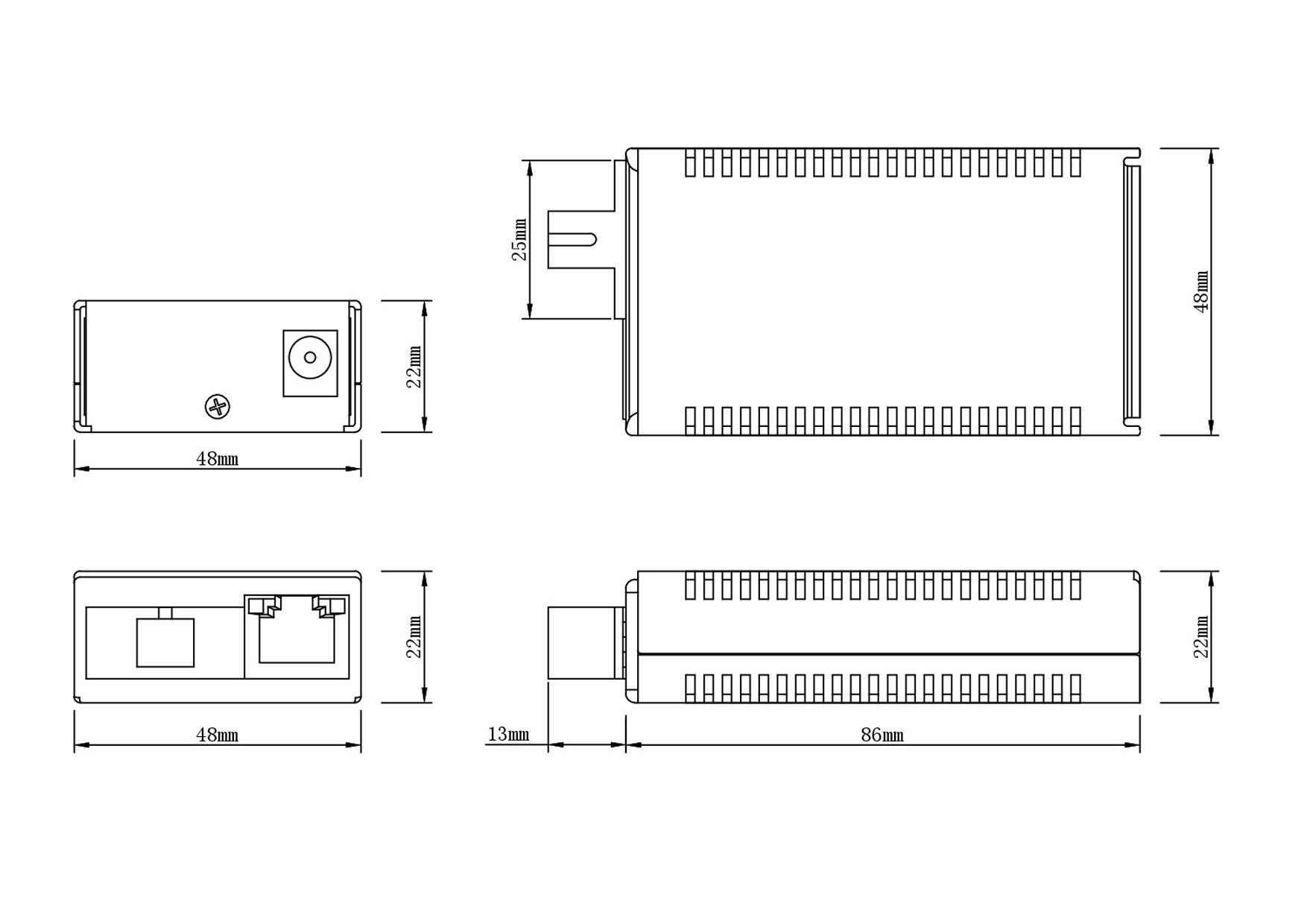

· Size：86×48×22mm((H×D×W)。

·  IEEE 802.3 Ethernet
·  IEEE 802.3U Ethernet
·  IEEE 802.3ab Ethernet
·  IEEE 802.3z Ethernet
·  IEEE 802.1d Spanning Tree

· Inter  cities  fiber optic network: Applied in  telecom and CATV data network operators
· Bandwidth  application: Applied in Financial,governmental,oil,railway,power  grid,transportation,education special networks
· Data transmission:  image, voice, data comprehensive transmission,applicable for remote education,  video conference, CCTV surveillance control signal,image and data simultaneous  transmission
