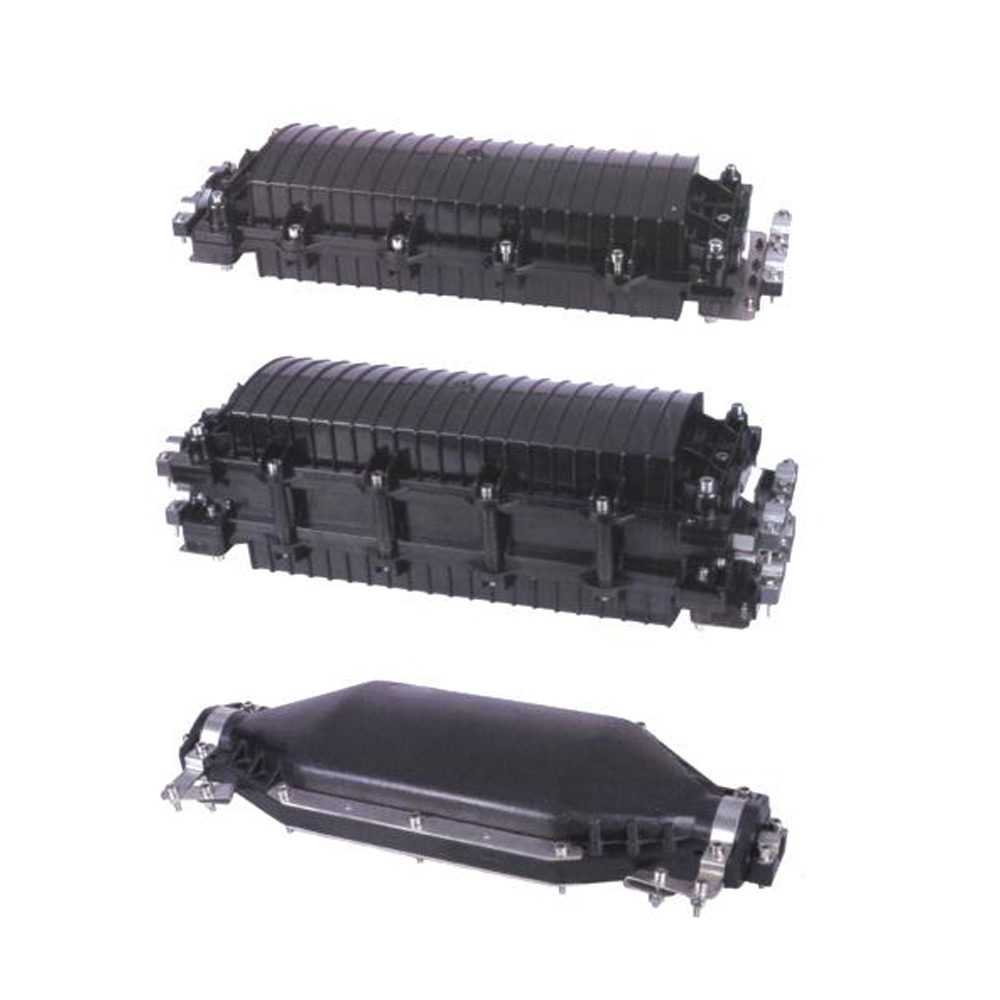

Optical Fiber Splice Closure
Up-down bisection style
- Description of the product
These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.
Item No. In-out number MAX Capacity
(Fibers)Dimension
（mm）Cable
DiameterGross
Weight
（Kg）Sealing
structureNormal
Configure1 1-1 48（4×12） 500×190×90 Φ7~18 3 Seal tape 12 2 1-1 60（5×12） 502×180×116 Φ7~18 3 Seal tapeor silicon rubber 12 3 2-2 60（5×12） 460×180×108 Φ7~18 3 Seal tapeor silicon rubber 24 4 2-2 60（5×12） 492×180×104 Φ7~25 3 Seal tape 24 5 2-2 60（5×12） 492×202×104 Φ7~25 3 Seal tape 24 6 4-4 96（8×12） 492×202×175 Φ7~25 5 Seal tape 24 7 2-2 96（8×12）
120（5×24）599×195×136 Φ7~25 4 Seal tapeor silicon rubber 24 8 4-4 144（12×12）
216（9×24）590×195×188 Φ7~25 8 Seal tapeor silicon rubber 48 9 6-6 72（6×12） 490×200×140 Φ7~25 5 Seal tape 24 10 3-3 216（9×24） 660×260×250 Φ7~25 7 Seal tape 36
