FTTH Cable GJYXFFCH




  • Description of the product

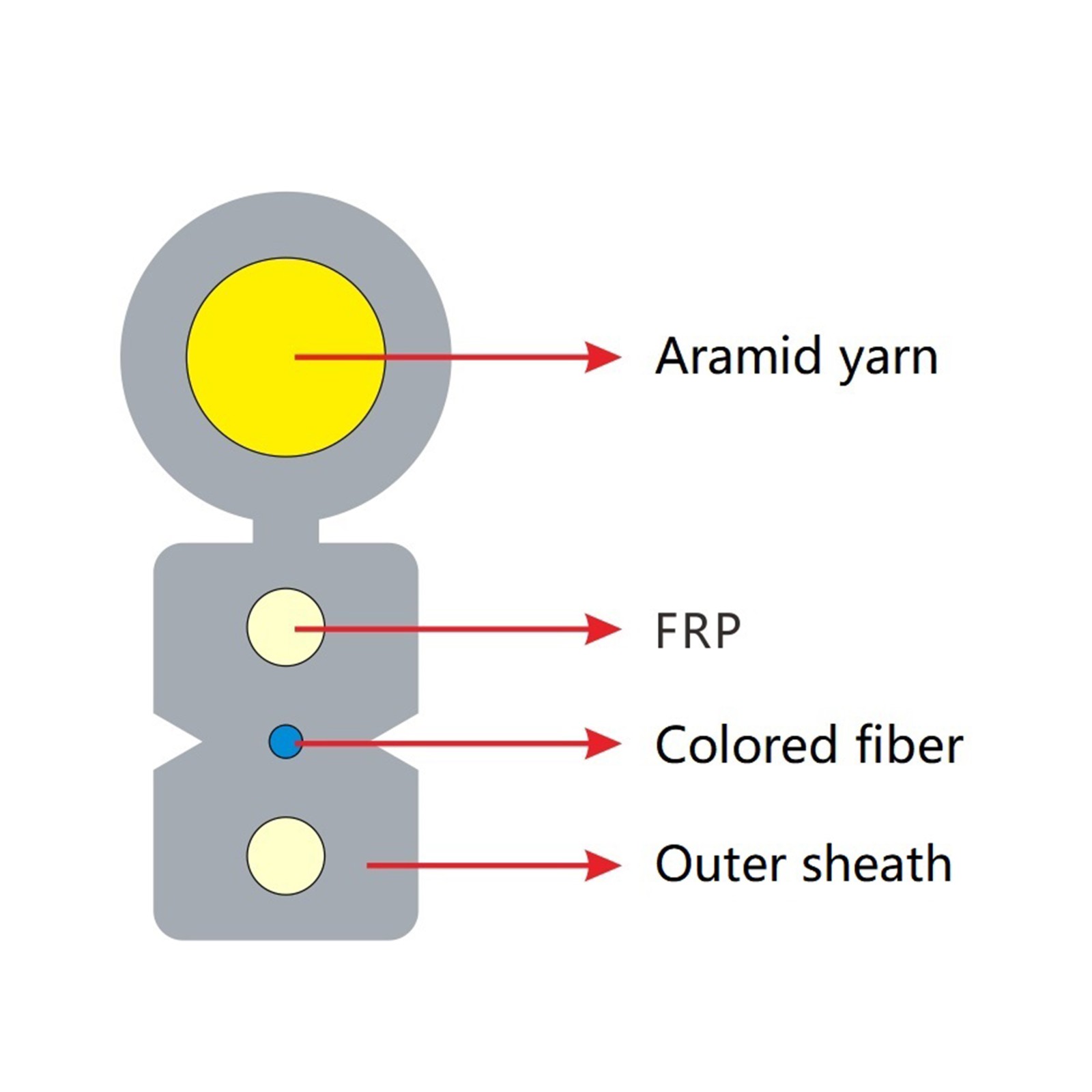

GJYXFFCH cable takes the colored fiber (single mode or multi-mode fiber) as the signal transmission unit, and the two sides of the cable are respectively placed with a non-metal reinforcement to form a square structure. At the same time, the high strength aramid yarn is used as the reinforcement to play a self-supporting overhead effect, and on this basis, a flame retardant polyolefin material is extruded to form a outer sheath.







·  The outer diameter of the product is small. Compared with the traditional self-supporting outdoor 8-figure cable, the weight is lighter and the installation is more convenient ;
 ·  It has high pressure resistance and tensile resistance, and can stand a certain wind speed;
 ·  Specific V-shaped cable is convenient for stripping and field installation ;

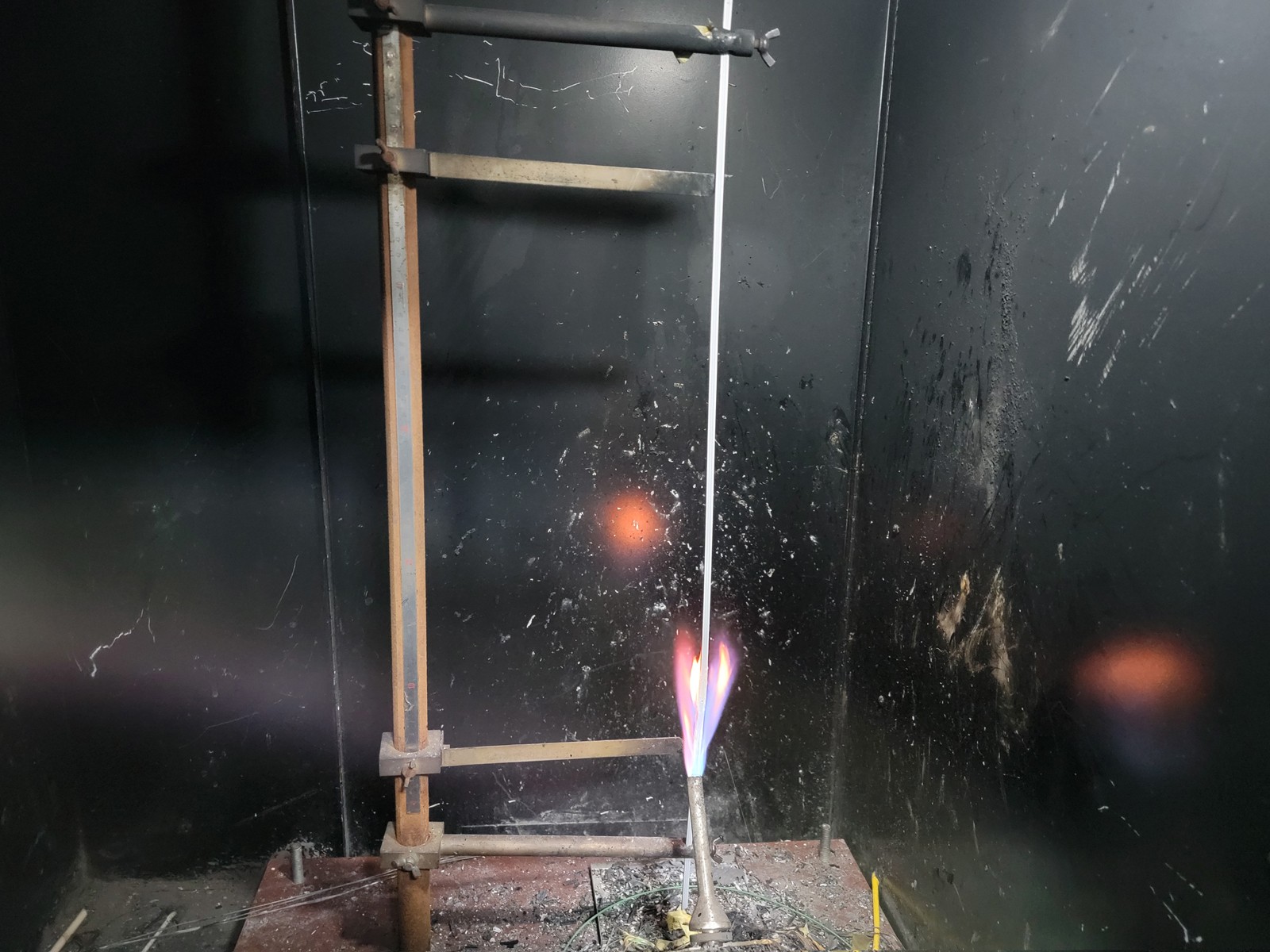

 · The outer sheath is made of flame retardant material, which can meet the requirements of flame retardant grade and environmental performance of outdoor optical cable .





•YDT 1997.1-2014 Access optic-fiber cables for communications - Part 1: Butterfly optical cables, IEC-60332 standard.









G.652

G.657

50/125μm

62.5/125μm



Attenuation
        (+20℃)

@850nm

 -

  -

≤3.5dB/km

≤3.5dB/km

@1300nm

  -

  -

≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.34dB/km

≤0.34dB/km

  -

  -

@1550nm

≤0.22dB/km

≤0.22dB/km

 -

  -

Bandwidth
      (Class A)

@850

 -

 -

≥500MHZ·km

≥200MHZ·km

@1300

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical    aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA

Cable Cutoff    Wavelength

 -

≤1260nm

≤1260nm

  -

 -







Cable
       type


      Fiber Count


      Cable Diameter
      mm


      Cable Weight
      Kg/km


      Tensile Strength
      Long/Short Term
      N


      Crush Resistance
      Long/Short Term
      N/100m


      Bending Radius
      Static/Dynamic
      mm

GJYXFFCH-1~2

1~2 core

2.5*5.65

19.4

500/1000

1000/2200

30D/15D

Storage/Operating Temperature : -40℃ to + 70℃








  • FTTHQA.jpg
