• Description of the product

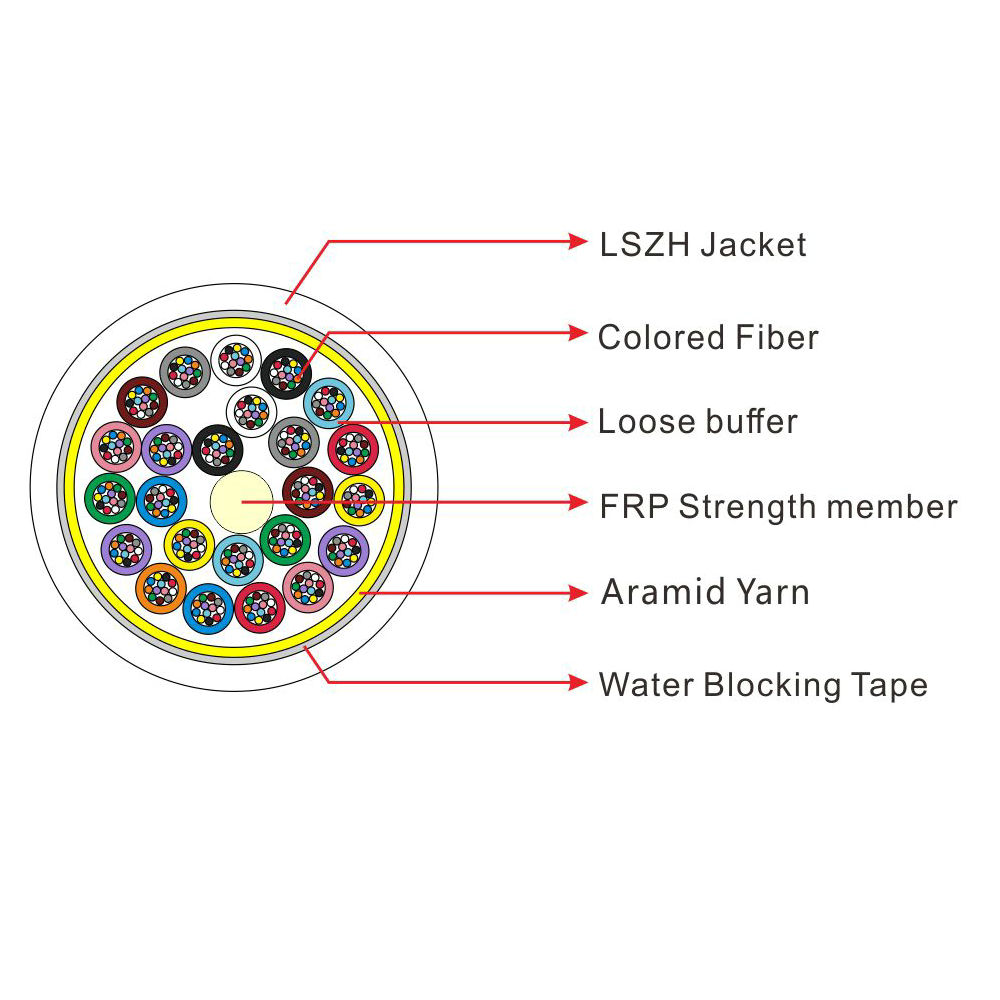

GJWF is made by placing multiple colored optical fibers (single mode or multimode fibers) in LSZH micro tubes, and spiral twisting multiple unit micro tubes around non-metallic tensile elements (aramid) to wrap a layer of water blocking tape to form a circular cable core. The outer layer of the cable core is effectively reinforced with multiple aramid yarns, and finally a layer of LSZH material is extruded (suitable color strips are extruded according to customer requirements), its purpose is to facilitate laying and construction maintenance identification.

·The  cable adopts a completely non-metallic structure, which has good lightning  protection effect;
 ·The  outer layer contains multiple strands of high-strength aramid fibers, which  have excellent tensile and curling resistance;
 ·The  product is high-density and has a small outer diameter, which can switch  between indoor and outdoor. It is dry and lightweight, with excellent peeling  effect;
 ·Micro  unit with thin wall design, easy to branch and peel off;
·The  product can adapt to a certain length of Z-shaped conduit and can achieve  roundabout wiring

YD/T1258.4-2005 and IEC 60794.
YD/T1258.4-2005 and  IEC 60794 standards

•



• Transportation temperature	－40℃～＋70℃
  Storage temperature	－40℃～＋70℃







•
