Colored Fiber 2-24 cores Mini Bundle Cable(GJFV)




  • Description of the product



  • 迷你束状缆(GJFV)-2.jpg

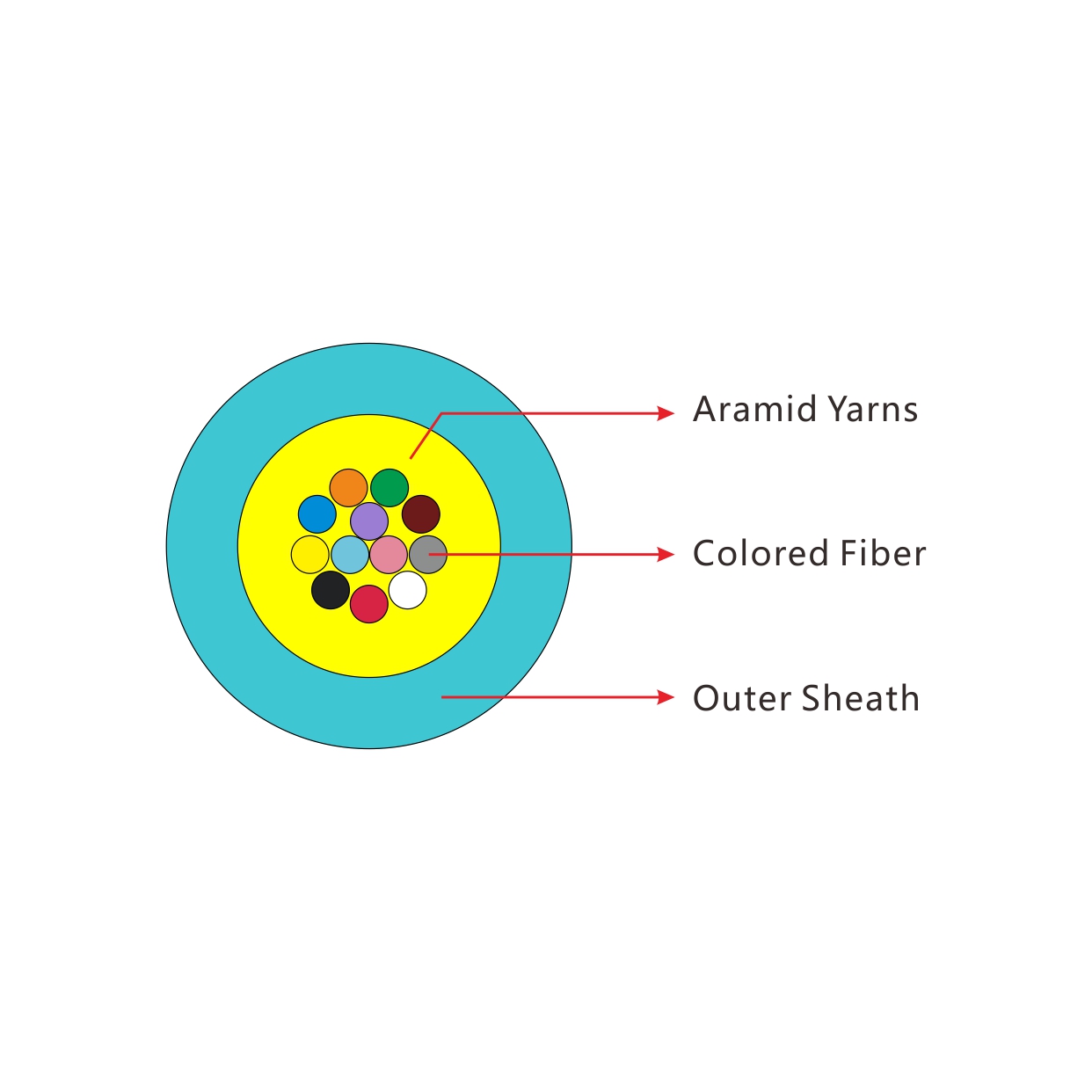

  • GJFV cable is made by evenly applying strands of Aramid yarns as the strength member over ф250μm fibers,twisting fibers with aramid yarn,then is completed with PVC(LSZH)jacket.


  • 1637913235219634.jpg



  •



  • ·Mini bundle cable,high strength aramid yarn,high-performance jacket
         ·Small bend radius, light weight,excellent strippability,easily strip and splice.
         ·Good mechanical and environment performance

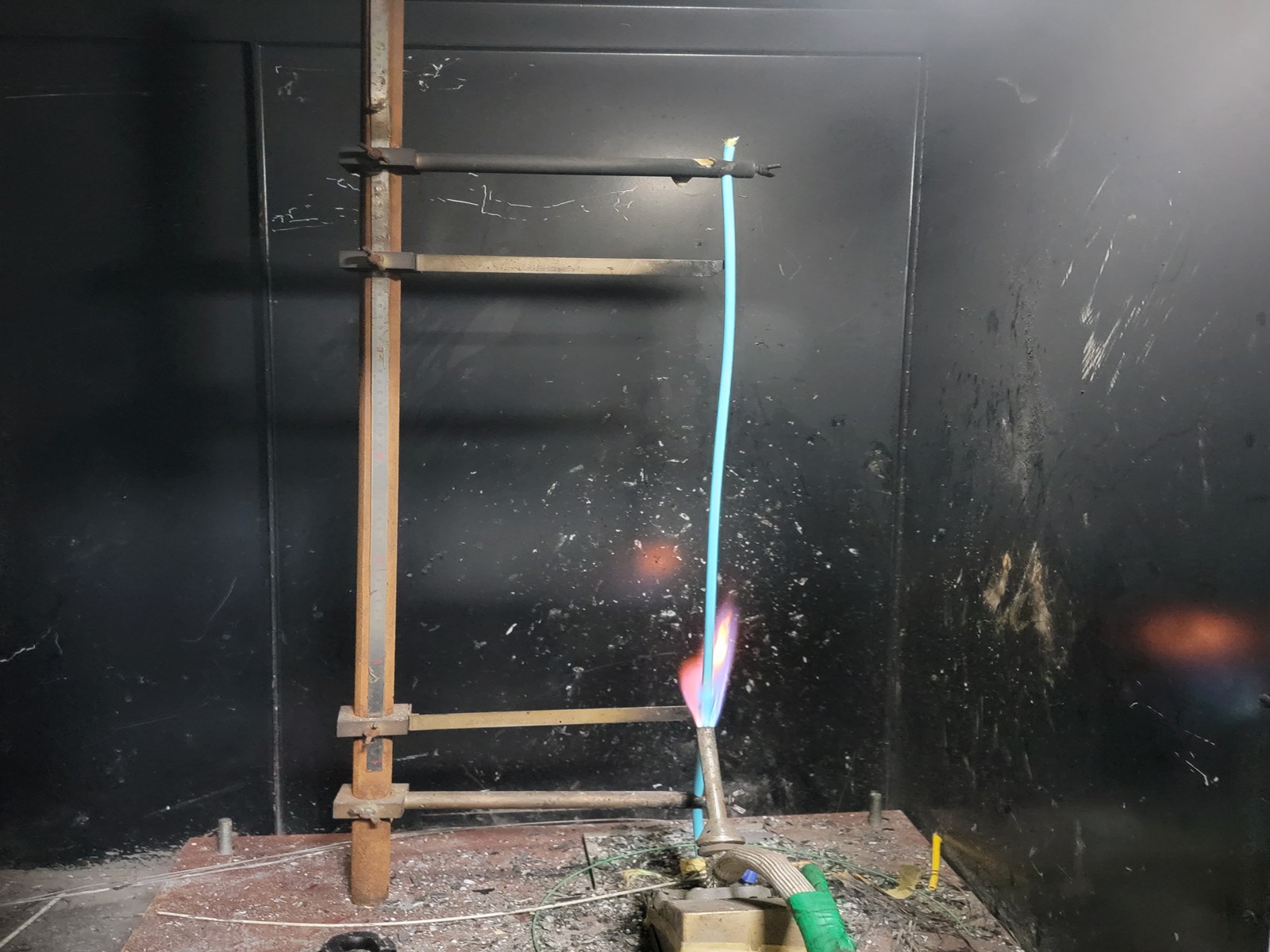

         ·Flame retardant or stop fire jacket,Provide good security.

  •

  •

    ·GJFV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.







                   G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation
                   (+20℃)

    @850nm





    ≤3.0dB/km

    ≤3.0dB/km

    @1300nm





    ≤1.0dB/km

    ≤1.0dB/km

    @1310nm

    ≤0.36dB/km

    ≤0.36dB/km





    @1550nm

    ≤0.22dB/km

    ≤0.23dB/km





    Bandwidth
                   (Class A)

    @850





    ≥500MHZ·km

    ≥200MHZ·km

    @1300





    ≥1000MHZ·km

    ≥600MHZ·km

    Numerical Aperture







    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength



    ≤1260nm

    ≤1480nm






  • 1614841287793075.jpg



  • Cable Type

    Fiber Count

    Cable Diameter  mm

    Cable Weight      Kg/km

    Tensile Strength Long/Short       N

    Crush Resistance Long/Short       N/100m

    Bending Radius  Static/Dynamic
                 mm

    GJFV

    2-12

    3.0

    7.5

    150/300

    80/150

    30D/15D

    GJFV

    14-24

    3.5

    8

    150/300

    80/150

    30D/15D


  • Storage/Operating temperature:-20℃~﹢60℃
