Optical Termination Box

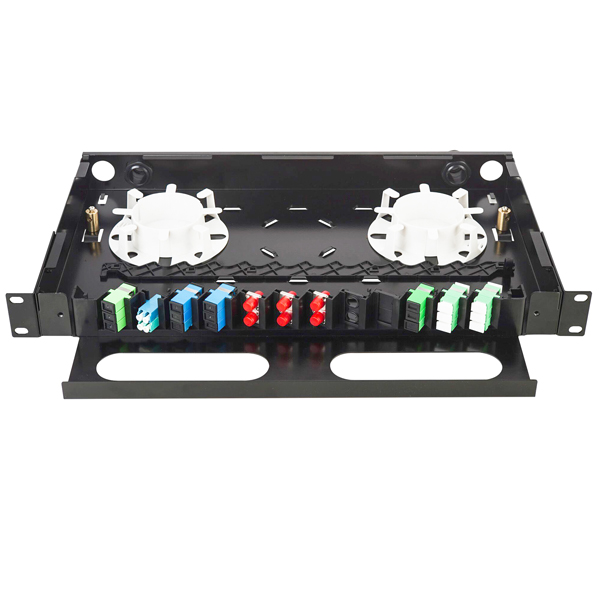

12 Port Universal Type Patch Panel
- Description of the product
The 12 port universal type optical fiber box can realize the functions of the termination, fusion of the optical cable, the fixing and grounding of the optical cable, as well as the protection of the optical core and pigtail. It can be installed in a standard 19” cabinet. Compatible with the flexible loading and unloading of various adapters such as ST, SC, FC, LC, MTRJ and MPO/MTP. It provides fiber splicing and distribution function inside, and sufficient fiber winding space to ensure the bending of the optical cable. Product structure Simple and easy to use.
● The cabinet adopts flat/fine sand grain baking varnish process, with bright appearance and high-grade texture. Hot-dip galvanized steel plate can effectively prevent rust and mildew
● Texture: bright/frosted
●Color: black/white optional
●The adapter strip module is made of PC+ABS plastic, with high strength and durabiilty
●Multiple adapters such as ST, SC, FC, LC, MTRJ and MPO/MTP can be installed according to requirements.
●The detachable adapter strip module can realize the fiber exit left or right.
●Measurement：480*340*45mm
●Packing Size：500*390*65mm。
●Weight：3KG（empty box）
●Durability：>1000 times. Steel board thickness：1.0mm
●Material：Hot-dip galvanized steel sheet/PC+ABS
