ONU

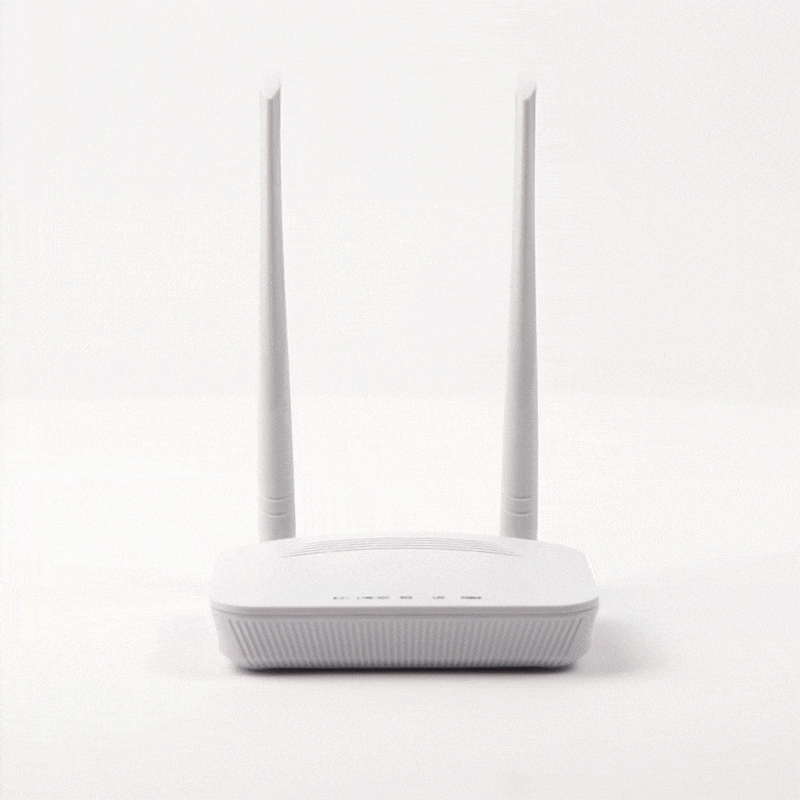

NCR 1GE+WIFI ONU
- Description of the product
NCR 1GE+WIFI ONU is designed for meeting the multi- services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
Ø HGU ONU, bridging and routing modes can be set
Ø Compatible with popular EPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø WiFi support 802.11n speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Items
Unit
Specifications
PON standard.
EPON IEEE802.3ah
Optical interface
SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
Speed
Gbps
EPON: symmetric 1.25Gbps
Wavelength
nm
Tx1310, Rx 1490
Interface
data
1*10/100/1000Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectorsWireless
Compliant with IEEE802.11b/g/n, 300Mbps
Indicator
LED
POWER、LOS、PON、LAN、WiFi
Operating condition
℃
Operating temp: -5 ~ +55
Storing condition
℃
Storing temp: -30 ~ +60
Humidity
%
10~90(non-condensing)
Power supply
V
DC 12V,0.5A adapter
Power consumption
W
≤3
Dimension
mm
120mm*78mm*28mm(length*width*height)
Net weight
Kg
0.25
